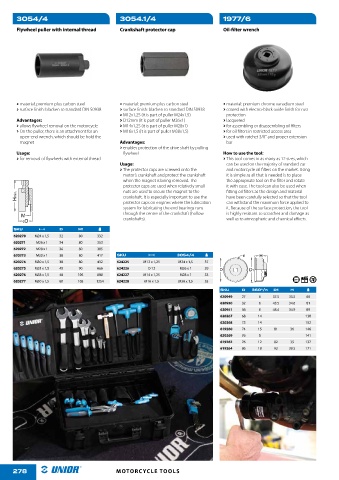

3054/4 3054.1/4 1977/6

Flywheel puller with internal thread Crankshaft protector cap Oil-!lter wrench

› material: premium plus carbon steel › material: premium plus carbon steel › material: premium chrome vanadium steel
› surface "nish: blacken to standard DIN 50938 › surface "nish: blacken to standard DIN 50938 › coated with electro-black oxide "nish for rust

› M12x1,25 (it is part of puller M24x1,5) protection
Advantages: › D12mm (it is part of puller M26x1) › lacquered

› allows &ywheel removal on the motorcycle › M14x1,25 (it is part of puller M28x1) › for assembling or disassembling oil "lters

› On the puller, there is an attachment for an › M16x1,5 (it is part of puller M38x1,5) › for oil "lters in restricted access area

open-end wrench, which should be hold the › used with ratchet 3/8" and proper extension
magnet Advantages: bar
› enables protection of the drive shaft by pulling
Usage: &ywheel How to use the tool:

› for removal of &ywheels with external thread › This tool comes in as many as 12 sizes, which
Usage: can be used on the majority of standard car

› The protector caps are screwed onto the and motorcycle oil "lters on the market. Using
motor’s crankshaft and protect the crankshaft it is simple as all that is needed is to place
when the magnet is being removed. The the appropriate tool on the "lter and rotate

protector caps are used when relatively small it with ease. The tool can also be used when
nuts are used to secure the magnet to the "tting oil "lters as the design and material

crankshaft. It is especially important to use the have been carefully selected so that the tool
protector caps on engines where the lubrication can withstand the maximum force applied to
system for lubricating the end bearings runs it. Because of the surface protection, the tool
through the centre of the crankshaft (hollow is highly resistant to scratches and damage as

crankshafts). well as to atmospheric and chemical e!ects.
SKU D H
620270 M24 x 1,5 32 80 332
620271 M26 x 1 34 80 353
620272 M28 x 1 36 80 385
620273 M30 x 1 38 80 417 SKU 3054/4
620274 M30 x 1,5 38 80 432 624225 M12 x 1,25 M24 x 1,5 37
620275 M35 x 1,5 45 90 666 624226 D 12 M26 x 1 39
620276 M38 x 1,5 48 105 880 624227 M14 x 1,25 M28 x 1 33
620277 M50 x 1,5 60 105 1254 624228 M16 x 1,5 M38 x 1,5 55
SKU D 360 o /n D1 H
620949 27 6 37.5 33.5 68
620950 32 6 43.5 34.6 81
620951 36 6 48.4 34.9 89
620267 68 14 130
620268 73 14 152
619260 74 15 81 36 146
620269 76 8 141
619262 76 12 82 35 137
619264 86 18 92 39.5 171

278 MOTORCYCLE TOOLS
