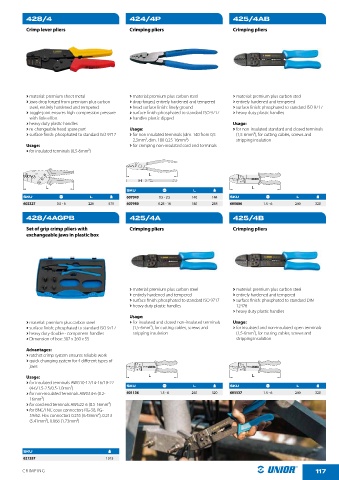

428/4 424/4P 425/4AB
Crimp lever pliers Crimping pliers Crimping pliers

› material: premium sheet metal › material: premium plus carbon steel › material: premium plus carbon steel
› jaws drop forged from premium plus carbon › drop forged, entirely hardened and tempered › entirely hardened and tempered

steel, entirely hardened and tempered › head surface "nish: "nely ground › surface "nish: phosphated to standard ISO 9717

› toggle joint ensures high compression pressure › surface "nish: phosphated to standard ISO 9717 › heavy duty plastic handles

with little e!ort › handles plastic dipped

› heavy duty plastic handles Usage:
› re-changeable head-spare part Usage: › for non-insulated standard and closed terminals
› surface "nish: phosphated to standard ISO 9717 › for non-insulated terminals (dim. 140 from 0,5- (1,5-6mm²), for cutting cables, screws and

2,5mm², dim. 180 0,25-16mm²) stripping insulation
Usage: › for crimping non-insulated cord end terminals
› for insulated terminals (0,5-6mm²)

SKU L
SKU L 607949 0.5 - 2.5 140 144 SKU L
602327 0.5 - 6 226 575 607950 0.25 - 16 180 258 605806 1.5 - 6 240 320

428/4AGPB 425/4A 425/4B
Set of grip crimp pliers with Crimping pliers Crimping pliers
exchangeable jaws in plastic box

› material: premium plus carbon steel › material: premium plus carbon steel
› entirely hardened and tempered › entirely hardened and tempered

› surface "nish: phosphated to standard ISO 9717 › surface "nish: phosphated to standard DIN

› heavy duty plastic handles 12476
› heavy duty plastic handles
Usage:
› material: premium plus carbon steel › for insulated and closed non-insulated terminals Usage:
› surface "nish: phosphated to standard ISO 9717 (1,5-6mm²), for cutting cables, screws and › for insulated and non-insulated open terminals

› heavy duty double - component handles stripping insulation (1,5-6mm²), for cutting cables, screws and
› Dimension of box: 307 x 260 x 55 stripping insulation
Advantages:
› ratchet crimp system ensures reliable work
› quick changing system for 4 di!erent types of

jaws
Usage:
› for insulated terminals AWG10-12/14-16/18-22
(4-6/1.5-2.5/0.5-1.0mm²) SKU L SKU L
› for non-insulated terminals AWG14-6 (0.2- 601136 1.5 - 6 240 320 601137 1.5 - 6 240 320
16mm²)
› for cord end terminals AWG22-6 (0.5-16mm²)
› for BNC/TNC coax connectors RG-58, RG-
59/62. Hex connectors 0.255 (6.48mm²), 0.213
(5.41mm²), 0.068 (1.73mm²)

SKU
621557 1315

CRIMPING 117
