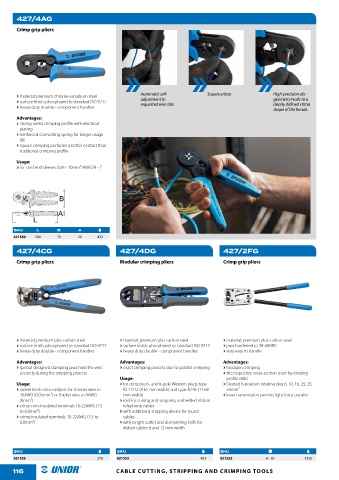

Page 118 - UniorTools-Eng

427/4AG
Crimp grip pliers

Automatic self- Square crimp. High-precision die
› material: premium chrome vanadium steel

› surface "nish: phosphated to standard ISO 9717 adjustment to geometry leads to a

clearly de!ned crimp
requested wire size.
› heavy duty double - component handles
shape of the ferrule.
Advantages:

› strong metal crimping pro"le with electrical
plating
› reinforced connecting spring for longer usage
life
› square crimping performs a better contact than
traditional crimping pro"le

Usage:
› for cord end sleeves 0,08 - 10mm²/AWG28 - 7

SKU L B A
621550 180 76 20 433

427/4CG 427/4DG 427/2FG

Crimp grip pliers Modular crimping pliers Crimp grip pliers

› material: premium plus carbon steel › material: premium plus carbon steel › material: premium plus carbon steel

› surface "nish: phosphated to standard ISO 9717 › surface "nish: phosphated to standard ISO 9717 › jaws hardened to 38-40HRC
› heavy duty double - component handles › heavy duty double - component handles › very easy to handle
Advantages: Advantages: Advantages:
› special designed clamping jaws hold the wire › exact crimping process due to parallel crimping › hexagon crimping
securely during the stripping process › the respective cross-section is set by rotating
Usage: pro"le disks

Usage: › for crimping 6- and 8-pole Western plugs type › Dented 6-position rotating dies 6, 10, 16, 25, 35,
› swivel knob micro-adjusts for thinner wire to RJ 11/12 (9.65 mm width) and type RJ 45 (11.68 50mm²
30AWG (0.05mm²) or thicker wire to 8AWG mm width) › lever transmission permits light force transfer
(8mm²) › tool for cutting and stripping unshielded ribbon
› crimp non-insulated terminals 10-22AWG (1.5 telephone cables
to 6.0mm²) › with additional stripping device for round
› crimp insulated terminals 10-22AWG (1.5 to cables
6.0mm²) › with length cutter and dismantling knife for
ribbon cables 6 and 12 mm width

SKU SKU SKU
621552 378 621553 401 621555 6 - 50 1350

116 CABLE CUTTING, STRIPPING AND CRIMPING TOOLS
