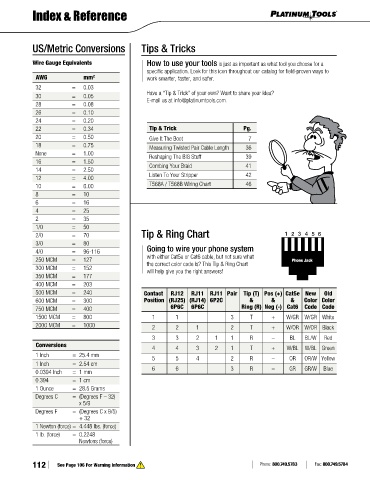

Index & Reference

US/Metric Conversions Tips & Tricks

Wire Gauge Equivalents How to use your tools is just as important as what tool you choose for a
specific application. Look for this icon throughout our catalog for field-proven ways to
AWG mm 2 work smarter, faster, and safer.
32 = 0.03
30 = 0.05 Have a “Tip & Trick” of your own? Want to share your idea?
E-mail us at info@platinumtools.com.
28 = 0.08
26 = 0.10
24 = 0.20
22 = 0.34 Tip & Trick Pg.
20 = 0.50 Give It The Boot 7
18 = 0.75 Measuring Twisted Pair Cable Length 36
None = 1.00 Reshaping The BIG Stuff 39
16 = 1.50 Combing Your Braid 41
14 = 2.50
12 = 4.00 Listen To Your Stripper 42
10 = 6.00 T568A / T568B Wiring Chart 46
8 = 10
6 = 16
4 = 25
2 = 35
1/0 = 50
2/0 = 70 Tip & Ring Chart
3/0 = 80
4/0 = 96-116 Going to wire your phone system
250 MCM = 127 with either Cat5e or Cat6 cable, but not sure what
the correct color code is? This Tip & Ring Chart
300 MCM = 152 will help give you the right answers!
350 MCM = 177
400 MCM = 203
500 MCM = 240 Contact RJ12 RJ11 RJ11 Pair Tip (T) Pos (+) Cat5e New Old
600 MCM = 300 Position (RJ25) (RJ14) 6P2C & & & Color Color
750 MCM = 400 6P6C 6P6C Ring (R) Neg (-) Cat6 Code Code
1500 MCM = 800 1 1 3 T + W/GR W/GR White
2000 MCM = 1000 2 2 1 2 T + W/OR W/OR Black

3 3 2 1 1 R – BL BL/W Red
Conversions 4 4 3 2 1 T + W/BL W/BL Green
1 Inch = 25.4 mm 5 5 4 2 R – OR OR/W Yellow
1 Inch = 2.54 cm
0.0394 Inch = 1 mm 6 6 3 R – GR GR/W Blue
0.394 = 1 cm
1 Ounce = 28.5 Grams
Degrees C = (Degrees F – 32)
x 5/9
Degrees F = (Degrees C x 9/5)
+ 32
1 Newton (force) = 4.448 lbs. (force)
1 lb. (force) = 0.2248
Newtons (force)
