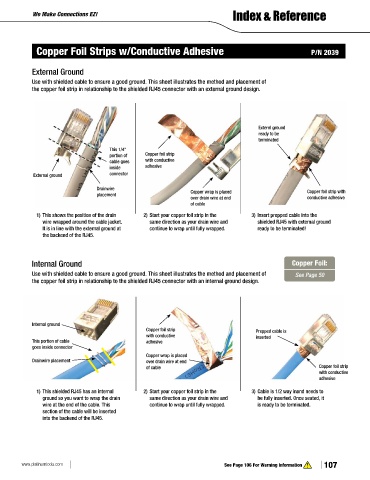

Copper Foil Strips w/Conductive Adhesive P/N 2039

External Ground
Use with shielded cable to ensure a good ground. This sheet illustrates the method and placement of
the copper foil strip in relationship to the shielded RJ45 connector with an external ground design.

Externl ground
ready to be
terminated
This 1/4"
portion of Copper foil strip
cable goes with conductive
inside adhesive
External ground connector
Drainwire Copper foil strip with
placement Copper wrap is placed
over drain wire at end conductive adhesive
of cable
1) This shows the position of the drain 2) Start your copper foil strip in the 3) Insert prepped cable into the
wire wrapped around the cable jacket. same direction as your drain wire and shielded RJ45 with external ground
It is in line with the external ground at continue to wrap until fully wrapped. ready to be terminated!
the backend of the RJ45.

Internal Ground Copper Foil:

Use with shielded cable to ensure a good ground. This sheet illustrates the method and placement of See Page 50
the copper foil strip in relationship to the shielded RJ45 connector with an internal ground design.

Internal ground
Copper foil strip Prepped cable is
with conductive inserted
This portion of cable adhesive
goes inside connector
Copper wrap is placed
Drainwire placement over drain wire at end
of cable Copper foil strip
with conductive
adhesive

1) This shielded RJ45 has an internal 2) Start your copper foil strip in the 3) Cable is 1/2 way inand needs to
ground so you want to wrap the drain same direction as your drain wire and be fully inserted. Once seated, it
wire at the end of the cable. This continue to wrap until fully wrapped. is ready to be terminated.
section of the cable will be inserted
into the backend of the RJ45.
