P. 29

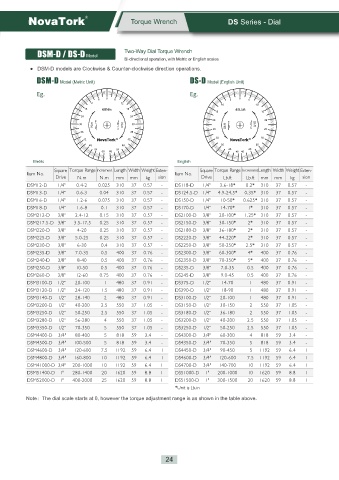

Torque Wrench DS Series - Dial
Two-Way Dial Torque Wrench
DSM-D / DS-D Model
One-Way Dial Torque Wrench Bi-directional operation, with Metric or English scales
Model
Select Metric and English scales by turning dial 180° ● DSM-D models are Clockwise & Counter-clockwise direction operations.
● DSM models are Clockwise direction operation only.
DSM-D Model (Metric Unit) DS-D Model (English Unit)
Eg. Eg.
Model (Metric Unit) Model (English Unit) 0 0
6 6 5 5
12 12 10 10
18 60Nm 18 45Lbft
Eg. Eg. 24 24 15 15
20 20
0 0 0.75
5 60 30 30 0.5 Lb.ft
45
12 40 10 54 N.m 0.75 N.m 25 Lb.ft 0.5 25
18 60Nm/45Lbft 35 45Lbft/60Nm 48 36 36
15 42 30 30
30
24 42 NovaTork R 42 NovaTork R
20 36 48 48 35 35
N.m Lb.ft N.m 30 54 60 60 54 40 40
30 0.75 Lb.ft 0.5
25
25 0.75 45 45
0.5
36 20
30 24 Metric English
42 15 18
48 10 35 Square Torque Range Increment Length Width Weight Exten- Square Torque Range IncrementLength Width Weight Exten-
54 40 12 Item No. Item No.
60 5 45
Drive N.m N.m mm mm kg sion Drive Lb.ft Lb.ft mm mm kg sion
0
0
DSM12-D 1/4 0.4-2 0.025 310 37 0.57 - DS118-D 1/4 3.6-18* 0.2* 310 37 0.57 -
DSM13-D 1/4 0.6-3 0.04 310 37 0.57 - DS124.5-D 1/4 4.9-24.5* 0.35* 310 37 0.57 -
Metric English
DSM16-D 1/4 1.2-6 0.075 310 37 0.57 - DS150-D 1/4 10-50* 0.625* 310 37 0.57 -
DSM18-D 1/4 1.6-8 0.1 310 37 0.57 - DS170-D 1/4 14-70* 1* 310 37 0.57 -
DSM212-D 3/8 2.4-12 0.15 310 37 0.57 - DS2100-D 3/8 20-100* 1.25* 310 37 0.57 -
DSM217.5-D 3/8 3.5-17.5 0.25 310 37 0.57 - DS2150-D 3/8 30-150* 2* 310 37 0.57 -
DSM220-D 3/8 4-20 0.25 310 37 0.57 - DS2180-D 3/8 36-180* 2* 310 37 0.57 -
DSM225-D 3/8 5.0-25 0.25 310 37 0.57 - DS2220-D 3/8 44-220* 2* 310 37 0.57 -
DSM230-D 3/8 6-30 0.4 310 37 0.57 - DS2250-D 3/8 50-250* 2.5* 310 37 0.57 -
DSM235-D 3/8 7.0-35 0.5 400 37 0.76 - DS2300-D 3/8 60-300* 4* 400 37 0.76 -
DSM240-D 3/8 8-40 0.5 400 37 0.76 - DS2350-D 3/8 70-350* 5* 400 37 0.76 -
DSM250-D 3/8 10-50 0.5 400 37 0.76 - DS235-D 3/8 7.0-35 0.5 400 37 0.76 -
DSM260-D 3/8 12-60 0.75 400 37 0.76 - DS245-D 3/8 9.0-45 0.5 400 37 0.76 -
DSM3100-D 1/2 20-100 1 480 37 0.91 - DS375-D 1/2 14-70 1 480 37 0.91 -
DSM3120-D 1/2 24-120 1.5 480 37 0.91 - DS390-D 1/2 18-90 1 480 37 0.91 -
DSM3140-D 1/2 28-140 2 480 37 0.91 - DS3100-D 1/2 20-100 1 480 37 0.91 -
DSM3200-D 1/2 40-200 2.5 550 37 1.05 - DS3150-D 1/2 30-150 2 550 37 1.05 -
DSM3250-D 1/2 50-250 2.5 550 37 1.05 - DS3180-D 1/2 36-180 2 550 37 1.05 -
DSM3280-D 1/2 56-280 4 550 37 1.05 - DS3200-D 1/2 40-200 2.5 550 37 1.05 -
DSM3350-D 1/2 70-350 5 550 37 1.05 - DS3250-D 1/2 50-250 2.5 550 37 1.05 -
DSM4400-D 3/4" 80-400 5 818 59 3.4 - DS4300-D 3/4" 60-300 4 818 59 3.4 -
DSM4500-D 3/4" 100-500 5 818 59 3.4 - DS4350-D 3/4" 70-350 5 818 59 3.4 -
DSM4600-D 3/4" 120-600 7.5 1192 59 6.4 1 DS4450-D 3/4" 90-450 5 1192 59 6.4 1
DSM4800-D 3/4" 160-800 10 1192 59 6.4 1 DS4600-D 3/4" 120-600 7.5 1192 59 6.4 1
DSM41000-D 3/4" 200-1000 10 1192 59 6.4 1 DS4700-D 3/4" 140-700 10 1192 59 6.4 1
DSM51400-D 1" 280-1400 20 1620 59 8.8 1 DS51000-D 1" 200-1000 10 1620 59 8.8 1
DSM52000-D 1" 400-2000 25 1620 59 8.8 1 DS51500-D 1" 300-1500 20 1620 59 8.8 1
*Unit is Lb.in
Note：The dial scale starts at 0, however the torque adjustment range is as shown in the table above.
Note：The dial scale starts at 0, however the torque adjustment range is as shown in the table above.
Extension bar
24
