Torque Wrench PW Series - Pneumatic

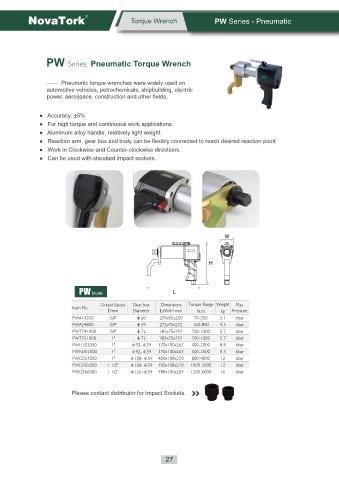

PW Series Pneumatic Torque Wrench

—— Pneumatic torque wrenches were widely used on
automotive vehicles, petrochemicals, shipbuilding, electric
power, aerospace, construction and other fields. NovaTork

● Accuracy: ±5%
● For high torque and continuous work applications.
● Aluminum alloy handle, relatively light weight.
● Reaction arm, gear box and body can be flexibly connected to reach desired reaction point.
● Work in Clockwise and Counter-clockwise directions.
● Can be used with standard impact sockets.

W

H

PW Model L
Output Square Gear box Dimensions Torque Range Weight Max.
Item No.
Drive Diameter LxWxH mm N.m kg Pressure
PWA14350 3/4" φ50 259x65x250 70-350 3.1 6bar
PWA24800 3/4" φ59 272x75x252 160-800 4.3 6bar
PWT241000 3/4" φ72 283x75x252 200-1000 5.7 6bar
PWT251000 1" φ72 283x75x252 200-1000 5.7 6bar
PWH352000 1" φ92-φ59 370x100x267 400-2000 8.8 6bar
PWN352500 1" φ92-φ59 370x100x267 500-2500 9.3 6bar
PWD354000 1" φ108-φ59 400x108x270 800-4000 12 6bar
PWD365000 1 1/2" φ108-φ59 400x108x270 1000-5000 12 6bar
PWD366000 1 1/2" φ126-φ59 488x100x264 1200-6000 16 6bar

Please contact distributor for Impact Sockets.

27
