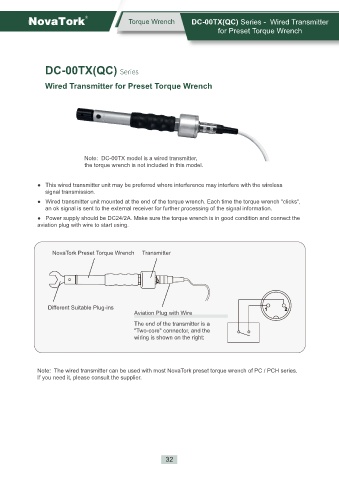

Torque Wrench DC-00TX(QC) Series - Wired Transmitter
for Preset Torque Wrench

DC-00TX(QC) Series

Wired Transmitter for Preset Torque Wrench

Note: DC-00TX model is a wired transmitter,
the torque wrench is not included in this model.

● This wired transmitter unit may be preferred where interference may interfere with the wireless
signal transmission.
● Wired transmitter unit mounted at the end of the torque wrench. Each time the torque wrench "clicks",
an ok signal is sent to the external receiver for further processing of the signal information.
● Power supply should be DC24/2A. Make sure the torque wrench is in good condition and connect the
aviation plug with wire to start using.

NovaTork Preset Torque Wrench Transmitter

Different Suitable Plug-ins
Aviation Plug with Wire
The end of the transmitter is a
"Two-core" connector, and the
wiring is shown on the right:

Note: The wired transmitter can be used with most NovaTork preset torque wrench of PC / PCH series.
If you need it, please consult the supplier.
