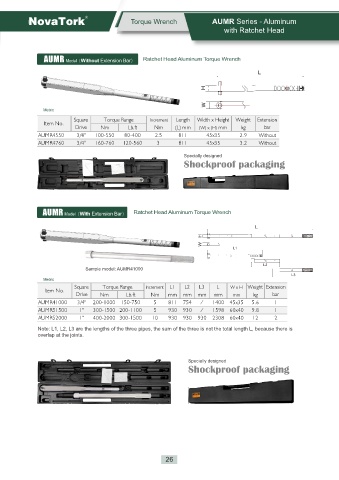

Page 31 - 2024诺特扭力英文NovaTork-Torque

Torque Wrench AUMR Series - Aluminum
with Ratchet Head

AUMR Model（Without Extension Bar） Ratchet Head Aluminum Torque Wrench
L

H 0 9 8 2 1

W
Metric
Square Torque Range Increment Length Width x Height Weight Extension
Item No.
Drive Nm Lb.ft Nm (L) mm (W) x (H) mm kg bar
Series AUMR4550 3/4" 100-550 80-400 2.5 811 45x35 2.9 Without
AUMR4760 3/4" 160-760 120-560 3 811 45x35 3.2 Without
● Accuracy: ±4% from 20% to 100% of capacity. Specially designed
● Integrated aluminum alloy overall design, light and strong. Shockproof packaging

● Unique ratchet structure design. With this ratchet head
you can continuously swing the handle to tighten the bolt,
instead of putting it on as often as a conventional head.
● Both sides with square drive, for both direction application,
easy to handle. AUMR Model（With Extension Bar） Ratchet Head Aluminum Torque Wrench

L
● Special window for main scale, and Minor scale near H
the end of the handle, better resolution. W
● With Metric or Imperial (depending on specific model), L1
easy to read. 0 9 8 2 1
L2
Sample model: AUMR41000
L3
Metric
Square Torque Range Increment L1 L2 L3 L W x H Weight Extension
● Unique locking end design, fix torque reliably. Effectively Item No.
avoid the possibility of adjustment to torque values caused by Drive Nm Lb.ft Nm mm mm mm mm mm kg bar
∕
unintentional or deliberate operation. AUMR41000 3/4" 200-1000 150-750 5 811 754 1400 45x35 5.6 1
AUMR51500 1“ 300-1500 200-1100 5 930 930 ∕ 1598 60x40 9.8 1
AUMR52000 1“ 400-2000 300-1500 10 930 930 930 2308 60x40 12 2
● Knurled handle for secure and comfortable grip. Note: L1, L2, L3 are the lengths of the three pipes, the sum of the three is not the total length L, because there is
Unique locking end design overlap at the joints.

● Unique serial number for each torque wrench, corresponding to the certificate of calibration.
Specially designed
Shockproof packaging
