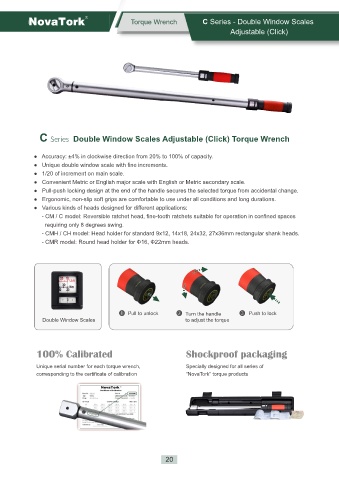

Torque Wrench C Series - Double Window Scales
Adjustable (Click)

C Series Double Window Scales Adjustable (Click) Torque Wrench

● Accuracy: ±4% in clockwise direction from 20% to 100% of capacity.
● Unique double window scale with fine increments.
● 1/20 of increment on main scale.
● Convenient Metric or English major scale with English or Metric secondary scale.
● Pull-push locking design at the end of the handle secures the selected torque from accidental change.
● Ergonomic, non-slip soft grips are comfortable to use under all conditions and long durations.
● Various kinds of heads designed for different applications:
- CM / C model: Reversible ratchet head, fine-tooth ratchets suitable for operation in confined spaces
requiring only 8 degrees swing.
- CMH / CH model: Head holder for standard 9x12, 14x18, 24x32, 27x36mm rectangular shank heads.
- CMR model: Round head holder for Ф16, Ф22mm heads.

1 Pull to unlock 2 Turn the handle 3 Push to lock
Double Window Scales to adjust the torque

100% Calibrated Shockproof packaging

Unique serial number for each torque wrench, Specially designed for all series of
corresponding to the certificate of calibration “NovaTork” torque products

PT223983
