Torque Wrench DC Series - Digi-Click Mechanical

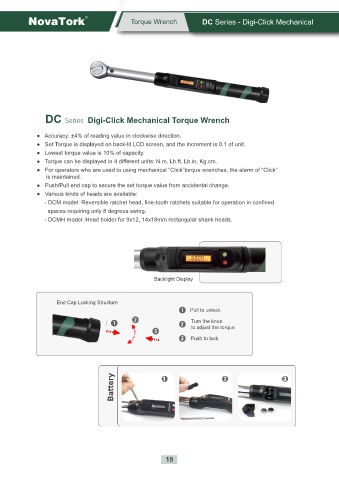

DC Series Digi-Click Mechanical Torque Wrench

● Accuracy: ±4% of reading value in clockwise direction.
● Set Torque is displayed on back-lit LCD screen, and the increment is 0.1 of unit.
● Lowest torque value is 10% of capacity.
● Torque can be displayed in 4 different units: N.m, Lb.ft, Lb.in, Kg.cm.
● For operators who are used to using mechanical “Click”torque wrenches, the alarm of “Click”
is maintained.
● Push/Pull end cap to secure the set torque value from accidental change.
● Various kinds of heads are available:
- DCM model: Reversible ratchet head, fine-tooth ratchets suitable for operation in confined
spaces requiring only 8 degrees swing.
- DCMH model: Head holder for 9x12, 14x18mm rectangular shank heads.

Backlight Display

End Cap Locking Structure
1 Pull to unlock
2 Turn the knob
1 2 to adjust the torque
3
3 Push to lock

Cbuufsz 1 2 3

18
