Torque Wrench Series - Preset Torque Wrench PC Series - Preset
Series for Mini Size PC_S Series for Mini Size

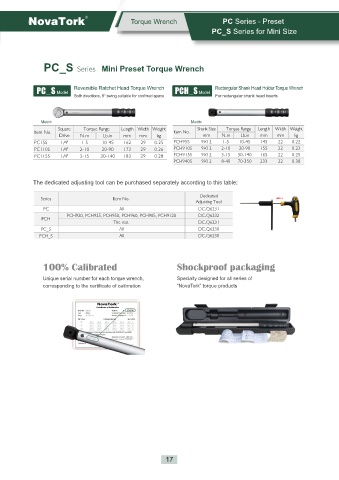

PC_S Series Mini Preset Torque Wrench

Reversible Ratchet Head Torque Wrench Rectangular Shank Head Holder Torque Wrench
PC_S Model PCH_S Model
Both directions, 8° swing suitable for confined space For rectangular shank head inserts

Front Hollow Pipe
Metric Metric
Square Torque Range Length Width Weight Shank Size Torque Range Length Width Weight
Item No. Item No.
Series Drive N.m Lb.in mm mm kg mm N.m Lb.in mm mm kg
PC15S 1/4" 1-5 10-45 162 29 0.25 PCH95S 9X12 1-5 10-45 145 22 0.22
● Accuracy: ±4% in clockwise direction from 20% to 100% of capacity. PC110S 1/4" 2-10 20-90 173 29 0.26 PCH910S 9X12 2-10 20-90 155 22 0.23
● Easy to adjust to desired torque (in the tool room, appropriates torque tester is required). PC115S 1/4" 3-15 30-140 183 29 0.28 PCH915S 9X12 3-15 30-140 165 22 0.25
8-40
0.38
70-350
233
9X12
PCH940S
22
● Operator cannot change set torque by accident or by mistake. Torque Adjusting Tool
● Various kinds of heads designed for different applications:
- PC model: Reversible ratchet head for both Clockwise and The dedicated adjusting tool can be purchased separately according to this table:
Counter-clockwise operation and can be operated with 8 degrees Dedicated
swing in small spaces. Series Item No. Adjusting Tool
- P C_S model: Mini size for PC model. PC All DC.Q6231
- PCH model: Head holder for standard 9x12, 14x18, 24x32, 27x36mm square shank heads. PCH PCH920, PCH925, PCH950, PCH960, PCH985, PCH9120 DC.Q6232
The rest DC.Q6231
- PCH_S model: Mini size for PCH model, head holder for mini standard 9x12mm square shank heads. PC_S All DC.Q6230
PCH_S All DC.Q6230
Reversible Ratchet Head Torque Wrench Rectangular Shank Head Holder Torque Wrench
Model Model
Both directions, 8° swing suitable for confined space For rectangular shank head inserts

100% Calibrated Shockproof packaging
Unique serial number for each torque wrench, Specially designed for all series of
Matching Optional corresponding to the certificate of calibration “NovaTork” torque products
Sockets Fittings:
Metric Metric

PF317202

17
