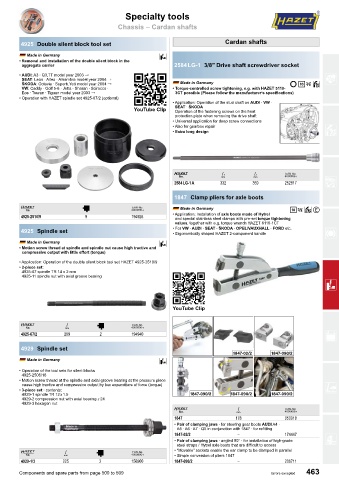

Page 465 - HAZET哈蔡特2024英文样本

Specialty tools

Chassis – Cardan shafts

4925 Double silent block tool set Cardan shafts

Made in Germany C
• Removal and installation of the double silent block in the
aggregate carrier 2584 LG-1 3/8″ Drive shaft screwdriver socket
• AUDI: A3 ∙ Q3,TT model year 2003 →
SEAT: León ∙ Altea ∙ Alhambra model year 2004 → G
ŠKODA: Octavia ∙ Superb,Yeti model year 2004 → Made in Germany b7 F
VW: Caddy ∙ Golf 5-6 ∙ Jetta ∙ Sharan ∙ Scirocco ∙ • Torque-controlled screw tightening, e.g. with HAZET 5110-
Eos ∙ Touran ∙ Tiguan model year 2003 → 3CT possible (Please follow the manufacturer‘s specifications)
• Operation with HAZET spindle set 4925-67/2 (optional)
• Application: Operation of the stud shaft on AUDI ∙ VW ∙
YouTube Clip SEAT ∙ ŠKODA
Operation of the fastening screws on the heat
protection plate when removing the drive shaft
• Universal application for deep screw connections
• Also for gearbox repair
• Extra long design F

1 M N 4
2584 LG-1 A 332 359 252817 D

1847 Clamp pliers for axle boots

1 è 4 Made in Germany 7 F/
• Application: Installation of axle boots made of Hytrel
4925-2510/9 9 194926 and special stainless steel clamps with pre-set torque tightening
values, together with e.g. torque wrench HAZET 6110-1CT
4925 Spindle set • For VW ∙ AUDI ∙ SEAT ∙ ŠKODA ∙ OPEL/VAUXHALL ∙ FORD etc. R
• Ergonomically shaped HAZET 2-component handle
Made in Germany C
• Motion screw thread at spindle and spindle nut cause high tractive and
compressive output with little effort (torque)
• Application: Operation of the double silent block tool set HAZET 4925-2510/9
• 2-piece set:
4925-67 spindle TR 14 x 2 mm
4925-11 spindle nut with axial groove bearing
C

YouTube Clip

1 K è 4
O
4925-67/2 259 2 194940

4929 Spindle set
1847-02/2 1847-090/2
Made in Germany C

• Operation of the tool sets for silent blocks
4925-2506/16
• Motion screw thread at the spindle and axial groove bearing at the pressure piece
cause high tractive and compressive output by low expenditure of force (torque)
• 3-piece set ∙ contents: A
4929-1 spindle TR 12 x 1.5 1847-090/2 1847-090/2 1847-090/2
4929-2 compression nut with axial bearing Ä 24
4929-3 hexagon nut
1 K 4
1847 178 050918
• Pair of clamping jaws ∙ for steering gear boots AUDI A4 ∙
A5 ∙ A6 ∙ A7 ∙ Q5 in conjunction with 1847 ∙ for refitting
1847-02/2 – 174447
• Pair of clamping jaws ∙ angled 90° ∙ for installation of high-grade U
steel straps / Hytrel axle boots that are difficult to access
1 K è 4 • “Movable” sockets enable the ear clamp to be clamped in parallel
• Simple conversion of pliers 1847
4929-1/3 225 3 156900 1847-090/2 – 206711

Components and spare parts from page 500 to 509 Errors excepted 463
