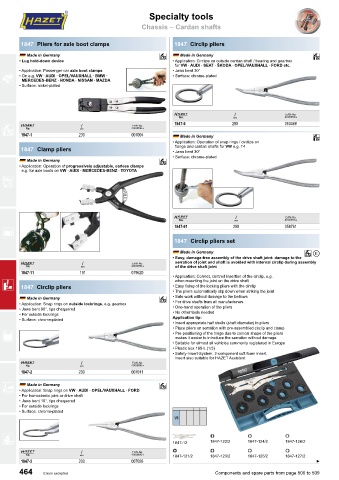

Page 466 - HAZET哈蔡特2024英文样本

Specialty tools Specialty tools

Chassis – Cardan shafts Chassis – Cardan shafts

1847 Pliers for axle boot clamps 1847 Circlip pliers

Made in Germany F Made in Germany F
• Lug hold-down device • Application: Circlips on outside cardan shaft / bearing and gearbox
for VW ∙ AUDI ∙ SEAT ∙ ŠKODA ∙ OPEL/VAUXHALL ∙ FORD etc.
• Application: Passenger car axle boot clamps • Jaws bent 30°
G • On e.g. VW ∙ AUDI ∙ OPEL/VAUXHALL ∙ BMW ∙ • Surface: chrome-plated
MERCEDES-BENZ ∙ HONDA ∙ NISSAN ∙ MAZDA
• Surface: nickel-plated

1 K 4
1 1847-6 200 050468
K
F 1847-1 230 4 Made in Germany
007004
• Application: Operation of snap rings / circlips on F
flange and cardan shafts for VW e.g. T4
1847 Clamp pliers • Jaws bent 30°
• Surface: chrome-plated
Made in Germany F
• Application: Operation of progressively adjustable, earless clamps
e.g. for axle boots on VW ∙ AUDI ∙ MERCEDES-BENZ ∙ TOYOTA

D

1 K 4
1847-61 200 058761
R
1847 Circlip pliers set

Made in Germany F/
• Easy, damage-free assembly of the drive shaft joint: damage to the
1 K 4 serration of joint and shaft is avoided with internal circlip during assembly
of the drive shaft joint
1847-11 191 079520
• Application: Correct, centred insertion of the circlip, e.g.
when mounting the joint on the drive shaft
C 1847 Circlip pliers • Easy fixing of the locking pliers with the circlip
• The pliers automatically slip down when striking the joint
Made in Germany F • Safe work without damage to the bellows
• Application: Snap rings on outside lockrings, e.g. gearbox • For drive shafts from all manufacturers
• Jaws bent 90°, tips chequered • One-hand operation of the pliers
• For outside lockrings • No other tools needed
• Surface: chrome-plated Application tip:
• Insert appropriate half shells (shaft diameter) in pliers
• Place pliers on serration with pre-assembled circlip and clamp
O • Pre-positioning of the hinge due to conical shape of the pliers
makes it easier to introduce the serration without damage
• Suitable for almost all vehicles commonly registered in Europe
• Plastic box 165-L (1/3)
• Safety-Insert-System, 2-component soft foam insert.
Insert also suitable for HAZET Assistent
1 K 4
1847-2 200 007011

A • Application: Snap rings on VW ∙ AUDI ∙ OPEL/VAUXHALL ∙ FORD F
Made in Germany
• For homocinetic joint or drive shaft
• Jaws bent 10°, tips chequered
• For outside lockrings
• Surface: chrome-plated

U 1847-12 1847-122/2 1847-124/2 1847-126/2

1 K 4 1847-121/2 1847-123/2 1847-125/2 1847-127/2
1847-3 200 007028 B
464 Errors excepted Components and spare parts from page 500 to 509
