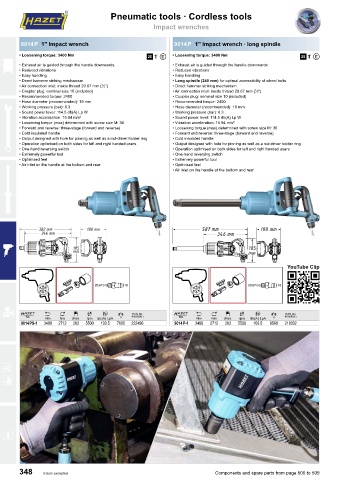

Page 350 - HAZET哈蔡特2024英文样本

Pneumatic tools ∙ Cordless tools Pneumatic tools ∙ Cordless tools

Impact wrenches Air ratchets

9014 P 1″ Impact wrench 9014 P 1″ Impact wrench ∙ long spindle

• Loosening torque: 3400 Nm 5 / • Loosening torque: 3400 Nm 5 /
• Exhaust air is guided through the handle downwards • Exhaust air is guided through the handle downwards
• Reduced vibrations • Reduced vibrations
• Easy handling • Easy handling
• Direct hammer striking mechanism • Long spindle (240 mm) for optimal accessibility of wheel bolts
• Air connection inlet: inside thread 20.67 mm ( ⁄2″) • Direct hammer striking mechanism
1
• Coupler plug: nominal size 10 (included) • Air connection inlet: inside thread 20.67 mm ( ⁄2″)
1
• Recommended torque: 2400 • Coupler plug: nominal size 10 (included)
• Hose diameter (recommended): 19 mm • Recommended torque: 2400
• Working pressure (bar): 6.3 • Hose diameter (recommended): 19 mm
• Sound power level: 114.5 db(A) Lp W • Working pressure (bar): 6.3
• Vibration acceleration: 15.94 m/s 2 • Sound power level: 114.5 db(A) Lp W
• Loosening torque (max) determined with screw size M: 36 • Vibration acceleration: 15.94 m/s 2
• Forward and reverse: three-stage (forward and reverse) • Loosening torque (max) determined with screw size M: 36
• Cold insulated handle • Forward and reverse: three-stage (forward and reverse)
• Output designed with hole for pinning as well as a nut-driver holder ring • Cold insulated handle
• Operation optimised on both sides for left and right handed users • Output designed with hole for pinning as well as a nut-driver holder ring
• One-hand reversing switch • Operation optimised on both sides for left and right handed users
• Extremely powerful tool • One-hand reversing switch
• Optimised feel • Extremely powerful tool
• Air inlet on the handle at the bottom and rear • Optimised feel
• Air inlet on the handle at the bottom and rear

YouTube Clip

1 Ú Nm l/min. rpm db (A) LpA 5 4 1 Nm Nm l/min. rpm db (A) LpA 5 4
Y
Ú
?
N
^
N
^
?
Y
Nm
9014 PS-1 3400 2712 283 5500 103.5 7800 222490 9014 P-1 3400 2712 283 5500 103.5 8580 218332

348 Errors excepted Components and spare parts from page 500 to 509
