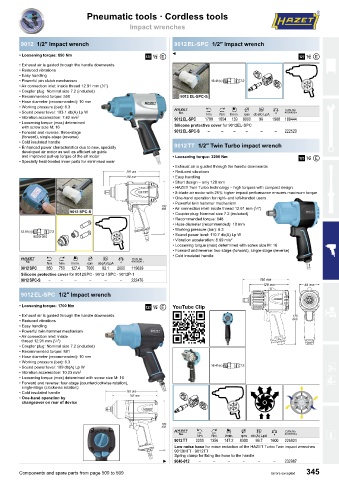

Page 347 - HAZET哈蔡特2024英文样本

Pneumatic tools ∙ Cordless tools

Impact wrenches

9012 1/2″ Impact wrench 9012 EL-SPC 1/2″ Impact wrench

• Loosening torque: 850 Nm 3 / C 3 /
• Exhaust air is guided through the handle downwards
• Reduced vibrations
• Easy handling
• Powerful pin clutch mechanism
1
• Air connection inlet: inside thread 12.91 mm ( ⁄4″)
• Coupler plug: Nominal size 7.2 (included)
• Recommended torque: 550 9012 EL-SPC-S
• Hose diameter (recommended): 10 mm
• Working pressure (bar): 6.3 1 5
^
?
N
Ú
• Sound power level: 103.1 db(A) Lp W Nm Y l/min. rpm db (A) LpA 4
Nm
• Vibration acceleration: 7.42 m/s 2 9012 EL-SPC 1700 1054 139 8000 98 1980 188444
• Loosening torque (max) determined
with screw size M: 16 Silicone protective cover for 9012EL-SPC
• Forward and reverse: three-stage 9012 EL-SPC-S – – – – – – 222520
(forward), single-stage (reverse)
• Cold insulated handle
• Enhanced power characteristics due to new, specially 9012 TT 1/2″ Twin Turbo impact wrench
developed air motor as well as efficient air guide
and improved pull-up torque of the air motor • Loosening torque: 2200 Nm 3 /
• Specially heat-treated inner parts for minimised wear
• Exhaust air is guided through the handle downwards
• Reduced vibrations
• Easy handling
• Short design – only 128 mm
• HAZET Twin Turbo technology – high torques with compact design
• 8-blade air motor with 25% higher impact performance ensures maximum torque
• One-hand operation for right- and left-handed users
• Powerful twin hammer mechanism
1
• Air connection inlet: inside thread 12.91 mm ( ⁄4″)
9012 SPC-S • Coupler plug: Nominal size 7.2 (included)
• Recommended torque: 948
• Hose diameter (recommended): 10 mm
• Working pressure (bar): 6.3
• Sound power level: 110.7 db(A) Lp W
• Vibration acceleration: 8.69 m/s 2
• Loosening torque (max) determined with screw size M: 16
• Forward and reverse: two-stage (forward), single-stage (reverse)
• Cold insulated handle
1 Ú Y ? ^ N 5 4
l/min.
rpm
Nm
92.1
850
9012 SPC Nm 750 127.4 7000 db (A) LpA 2600 119639
Silicone protective cover for 9012SPC ∙ 9012-1SPC ∙ 9012P-1
9012 SPC-S – – – – – – 222476
9012 EL-SPC 1/2″ Impact wrench
• Loosening torque: 1700 Nm 3 / YouTube Clip
• Exhaust air is guided through the handle downwards
• Reduced vibrations
• Easy handling
• Powerful twin hammer mechanism
• Air connection inlet: inside
thread 12.91 mm ( ⁄4″)
1
• Coupler plug: Nominal size 7.2 (included)
• Recommended torque: 881
• Hose diameter (recommended): 10 mm
• Working pressure (bar): 6.3
• Sound power level: 109 db(A) Lp W
• Vibration acceleration: 10.23 m/s 2
• Loosening torque (max) determined with screw size M: 16
• Forward and reverse: four-stage (counterclockwise rotation),
single-stage (clockwise rotation)
• Cold insulated handle
• One-hand operation by
changeover on rear of device

1 Ú Y ? ^ N 5 4
Nm
l/min.
Nm
rpm
99.7
9012 TT 2200 1356 147.2 8300 db (A) LpA 1600 226924
Low noise hose for noise reduction of the HAZET Turbo Twin impact wrenches
9012MTT ∙ 9012TT
Spring clamp for fixing the hose to the handle
B 9040-012 – – – – – – 232987
Components and spare parts from page 500 to 509 Errors excepted 345
