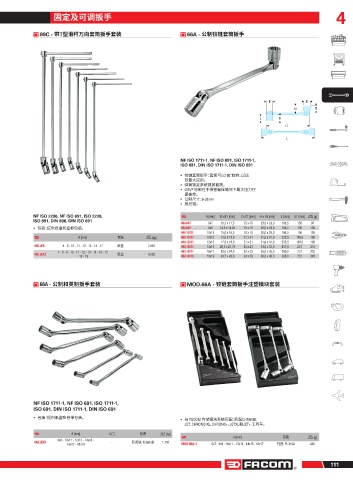

Page 119 - FACOM产品目录2025

B B1
H1 C1
C H
L1

L

A [mm] B x B1 [mm] C x C1 [mm] H x H1 [mm] L [mm] L1 [mm] [g]
66A.6X7 6x7 10,3 x 11,5 15 x 15 23,0 x 23,0 188,5 156 95
66A.8X9 8x9 12,6 x 13,85 15 x 15 23,0 x 23,0 188,5 156 100
66A.10X11 10x11 15,0 x 16,5 18 x 18 26,0 x 26,0 194,5 156 105
A [mm] 包装 [kg] 66A.10X13 10x13 15,0 x 19,0 21 x 21 31,0 x 31,0 233,5 189,5 190
66A.12X13 12x13 17,5 x 19,0 21 x 21 31,0 x 31,0 233,5 189,5 195
99C.JE8 8 - 9 - 10 - 11 - 12 - 13 - 14 - 17 纸盒 2,840 66A.14X15 14x15 20,5 x 21,75 23 x 23 33,0 x 33,0 237,5 231 215
7 - 8 - 9 - 10 - 11 - 12 - 13 - 14 - 16 - 17 66A.16X17 16x17 23,0 x 24,0 23 x 23 35,0 x 35,0 280,0 231 325
99C.JE12 纸盒 4,550
- 18 - 19 66A.18X19 18x19 24,7 x 26,0 24 x 28 36,0 x 40,0 286,0 231 345

66A - 公制和英制扳手套装

A [mm] A ["] 包装 [kg] A [mm] [g]
66A.JE6T 8x9 - 10x11 - 12x13 - 14x15 - - 尼龙袋: N.38A-6B 1,150 包装
16x17 - 18x19 MOD.66A-1 6x7 - 8x9 - 10x11 - 12x13 - 14x15 - 16x17 托盘: PL.319A 940

110 111
