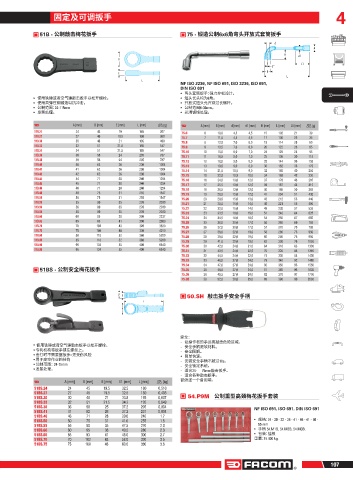

d
A
H d1
B
L1
5°
B
E
L
L

A [mm] B [mm] E [mm] L [mm] [g] A [mm] B [mm] d [mm] d1 [mm] H [mm] L [mm] L1 [mm] [g]
51B.24 24 42 19 165 267 75.6 6 10,0 4,5 4,5 15 102 21 30
51B.27 27 45 19.5 180 360 75.7 7 11,0 4,5 4,5 17 106 22 35
51B.30 30 48 21 195 490 75.8 8 12,5 7,0 6,0 19 114 25 60
51B.32 32 51 21.5 195 547 75.9 9 13,5 7,0 6,0 20 122 26 65
51B.34 34 51 21.5 195 547 75.10 10 15,0 8,0 7,0 24 129 28 95
51B.36 36 56 24 205 787 75.11 11 16,5 8,0 7,0 25 136 30 115
51B.38 38 56 24 205 787 75.12 12 18,0 9,0 8,0 28 144 36 155
51B.40 40 62 26 230 1004 75.13 13 19,5 9,0 8,0 30 152 38 175
51B.41 41 62 26 230 1004 75.14 14 21,0 10,5 9,0 32 160 40 205
51B.42 42 62 26 230 1004 75.15 15 22,5 10,5 10,0 34 169 42 230
51B.44 44 71 28 240 1254 75.16 16 24,0 13,0 12,0 37 178 46 285
51B.45 45 71 28 240 1254 75.17 17 25,5 13,0 12,0 39 187 48 315
51B.46 46 71 28 240 1254 75.18 18 26,5 13,0 12,0 40 195 50 365
51B.48 48 75 31 255 1547 75.19 19 28,5 15,0 12,0 41 204 51 430
51B.50 50 75 31 255 1547 75.20 20 29,5 15,0 13,0 43 212 53 440
51B.55 55 80 35 270 2030 75.21 21 30,5 15,0 14,0 46 221 55 490
51B.56 56 80 35 270 2030 75.22 22 32,0 15,0 14,0 48 230 57 535
51B.58 58 80 35 270 2030 75.23 23 33,5 18,0 15,0 51 240 64 625
51B.60 60 85 38 280 2337 75.24 24 34,5 18,0 16,0 54 250 67 660
51B.65 65 93 41 300 2980 75.25 25 36,0 20,0 17,0 56 260 69 785
51B.70 70 102 43 320 3630 75.26 26 37,0 20,0 17,0 57 270 70 795
51B.75 75 108 48 330 4010 75.27 27 38,0 22,0 19,0 58 280 73 950
51B.80 80 118 52 360 5200 75.28 28 39,5 22,0 19,0 60 290 75 950
51B.85 85 118 52 360 5200 75.29 29 41,0 22,0 19,0 62 300 76 1050
51B.90 90 134 55 400 6840 75.30 30 42,0 24,0 21,0 64 310 83 1300
51B.95 95 134 55 400 6840 75.31 31 43,5 24,0 22,6 70 320 86 1385
75.32 32 44,5 24,0 22,6 74 330 88 1400
75.33 33 46,0 27,0 24,0 79 340 92 1480
75.34 34 47,0 27,0 24,0 80 350 95 1550
75.35 35 48,5 27,0 24,0 81 360 96 1630
75.36 36 49,5 27,0 24,0 82 370 97 1700
75.38 38 52,0 28,0 25,0 85 390 99 2080

E1 E
L
B

A [mm] B [mm] E [mm] E1 [mm] L [mm] [kg]
51BS.24 24 45 19.5 32.5 180 0,510
51BS.27 27 45 19.5 32.5 180 0,493
51BS.30 30 48 21 33.8 195 0,607
51BS.32 32 51 21.5 34.2 195 0,649
51BS.36 36 59 25 37.2 205 0,904
51BS.41 41 62 26 37.2 231 0,904
51BS.46 46 71 28 39.0 240 1.7
51BS.50 50 75 31 41.0 255 1.5
51BS.55 55 80 35 47.5 270 2.0
51BS.60 60 85 38 49.5 280 2.3
51BS.65 65 93 41 48.0 300 2.7
51BS.70 70 102 43 58.0 320 3.5
51BS.75 75 108 48 60.0 330 3.8
