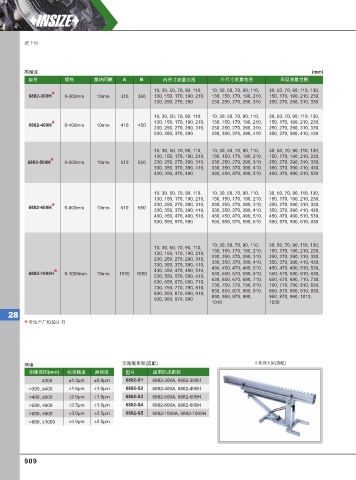

接上页

高精度 (mm)
型号 规格 量块间隔 A B 内尺寸测量范围 外尺寸测量范围 高度测量范围
10, 30, 50, 70, 90, 110, 10, 30, 50, 70, 90, 110, 30, 50, 70, 90, 110, 130,
6882-300H* 0-300mm 10mm 310 350 130, 150, 170, 190, 210, 130, 150, 170, 190, 210, 150, 170, 190, 210, 230,
230, 250, 270, 290 230, 250, 270, 290, 310 250, 270, 290, 310, 330

10, 30, 50, 70, 90, 110, 10, 30, 50, 70, 90, 110, 30, 50, 70, 90, 110, 130,
6882-400H* 0-400mm 10mm 410 450 130, 150, 170, 190, 210, 130, 150, 170, 190, 210, 150, 170, 190, 210, 230,
230, 250, 270, 290, 310, 230, 250, 270, 290, 310, 250, 270, 290, 310, 330,
330, 350, 370, 390 330, 350, 370, 390, 410 350, 370, 390, 410, 430

10, 30, 50, 70, 90, 110, 10, 30, 50, 70, 90, 110, 30, 50, 70, 90, 110, 130,
130, 150, 170, 190, 210, 130, 150, 170, 190, 210, 150, 170, 190, 210, 230,
6882-500H* 0-500mm 10mm 510 550 230, 250, 270, 290, 310, 230, 250, 270, 290, 310, 250, 270, 290, 310, 330,
330, 350, 370, 390, 410, 330, 350, 370, 390, 410, 350, 370, 390, 410, 430,
430, 450, 470, 490 430, 450, 470, 490, 510 450, 470, 490, 510, 530

10, 30, 50, 70, 90, 110, 10, 30, 50, 70, 90, 110, 30, 50, 70, 90, 110, 130,
130, 150, 170, 190, 210, 130, 150, 170, 190, 210, 150, 170, 190, 210, 230,
6882-600H* 0-600mm 10mm 610 650 230, 250, 270, 290, 310, 230, 250, 270, 290, 310, 250, 270, 290, 310, 330,

330, 350, 370, 390, 410, 330, 350, 370, 390, 410, 350, 370, 390, 410, 430,
430, 450, 470, 490, 510, 430, 450, 470, 490, 510, 450, 470, 490, 510, 530,
530, 550, 570, 590 530, 550, 570, 590, 610 550, 570, 590, 610, 630

10, 30, 50, 70, 90, 110, 30, 50, 70, 90, 110, 130,
10, 30, 50, 70, 90, 110,
130, 150, 170, 190, 210, 130, 150, 170, 190, 210, 150, 170, 190, 210, 230,
230, 250, 270, 290, 310, 230, 250, 270, 290, 310, 250, 270, 290, 310, 330,
330, 350, 370, 390, 410, 350, 370, 390, 410, 430,
330, 350, 370, 390, 410, 430, 450, 470, 490, 510, 450, 470, 490, 510, 530,
6882-1000H* 0-1000mm 10mm 1010 1050 430, 450, 470, 490, 510, 530, 550, 570, 590, 610, 550, 570, 590, 610, 630,
530, 550, 570, 590, 610,
630, 650, 670, 690, 710, 630, 650, 670, 690, 710, 650, 670, 690, 710, 730,
730, 750, 770, 790, 810, 730, 750, 770, 790, 810, 750, 770, 790, 810, 830,
830, 850, 870, 890, 910, 830, 850, 870, 890, 910, 850, 870, 890, 910, 930,
930, 950, 970, 990, 950, 970, 990, 1010,
930, 950, 970, 990
1010 1030
28
* 带生产厂检验证书

精度 步距规支架(选配) 步距规支架(选配)
测量范围(mm) 标准精度 高精度 型号 适用的步距规
≤300 ±1.3μm ±0.8μm 6882-S1 6882-300A, 6882-300H
>300, ≤400 ±1.6μm ±1.0μm 6882-S2 6882-400A, 6882-400H
>400, ≤500 ±2.0μm ±1.0μm 6882-S3 6882-500A, 6882-500H
>500, ≤600 ±2.5μm ±1.0μm 6882-S4 6882-600A, 6882-600H
>600, ≤800 ±3.0μm ±2.5μm 6882-S5 6882-1000A, 6882-1000H
>800, ≤1000 ±4.0μm ±2.5μm
