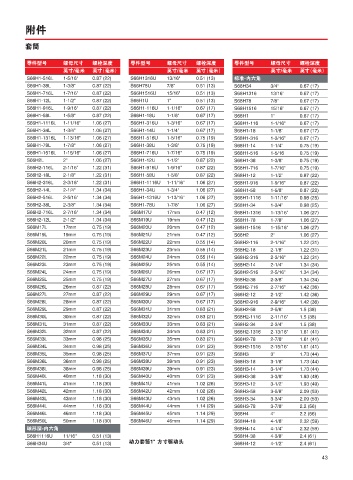

P. 43
附件
套筒
零件型号 螺母尺寸 螺栓深度 零件型号 螺母尺寸 螺栓深度 零件型号 螺母尺寸 螺栓深度
英寸/毫米 英寸（毫米） 英寸/毫米 英寸（毫米） 英寸/毫米 英寸（毫米）
S66H1-516L 1-5/16" 0.87 (22) S66H1316U 13/16" 0.51 (13) 标准-内六角
S66H1-38L 1-3/8" 0.87 (22) S66H78U 7/8" 0.51 (13) S68H34 3/4" 0.67 (17)
S66H1-716L 1-7/16" 0.87 (22) S66H1516U 15/16" 0.51 (13) S68H1316 13/16" 0.67 (17)
S66H1-12L 1-1/2" 0.87 (22) S66H1U 1" 0.51 (13) S68H78 7/8" 0.67 (17)
S66H1-916L 1-9/16" 0.87 (22) S66H1-116U 1-1/16" 0.67 (17) S68H1516 15/16" 0.67 (17)
S66H1-58L 1-5/8" 0.87 (22) S66H1-18U 1-1/8" 0.67 (17) S68H1 1" 0.67 (17)
S66H1-1116L 1-11/16" 1.06 (27) S66H1-316U 1-3/16" 0.67 (17) S68H1-116 1-1/16" 0.67 (17)
S66H1-34L 1-3/4" 1.06 (27) S66H1-14U 1-1/4" 0.67 (17) S68H1-18 1-1/8" 0.67 (17)
S66H1-1316L 1-13/16" 1.06 (27) S66H1-516U 1-5/16" 0.75 (19) S68H1-316 1-3/16" 0.67 (17)
S66H1-78L 1-7/8" 1.06 (27) S66H1-38U 1-3/8" 0.75 (19) S68H1-14 1-1/4" 0.75 (19)
S66H1-1516L 1-15/16" 1.06 (27) S66H1-716U 1-7/16" 0.75 (19) S68H1-516 1-5/16 0.75 (19)
S66H2L 2" 1.06 (27) S66H1-12U 1-1/2" 0.87 (22) S68H1-38 1-3/8" 0.75 (19)
S66H2-116L 2-1/16" 1.22 (31) S66H1-916U 1-9/16" 0.87 (22) S68H1-716 1-7/16" 0.75 (19)
S66H2-18L 2-1/8" 1.22 (31) S66H1-58U 1-5/8" 0.87 (22) S68H1-12 1-1/2" 0.87 (22)
S66H2-316L 2-3/16" 1.22 (31) S66H1-1116U 1-11/16" 1.06 (27) S68H1-916 1-9/16" 0.87 (22)
S66H2-14L 2-1/4" 1.34 (34) S66H1-34U 1-3/4" 1.06 (27) S68H1-58 1-5/8" 0.87 (22)
S66H2-516L 2-5/16" 1.34 (34) S66H1-1316U 1-13/16" 1.06 (27) S68H1-1116 1-11/16" 0.98 (25)
S66H2-38L 2-3/8" 1.34 (34) S66H1-78U 1-7/8" 1.06 (27) S68H1-34 1-3/4" 0.98 (25)
S66H2-716L 2-7/16" 1.34 (34) S66M17U 17mm 0.47 (12) S68H1-1316 1-13/16" 1.06 (27)
S66H2-12L 2-1/2" 1.34 (34) S66M19U 19mm 0.47 (12) S68H1-78 1-7/8" 1.06 (27)
S66M17L 17mm 0.75 (19) S66M20U 20mm 0.47 (12) S68H1-1516 1-15/16" 1.06 (27)
S66M19L 19mm 0.75 (19) S66M21U 21mm 0.47 (12) S68H2 2" 1.06 (27)
S66M20L 20mm 0.75 (19) S66M22U 22mm 0.55 (14) S68H2-116 2-1/16" 1.22 (31)
S66M21L 21mm 0.75 (19) S66M23U 23mm 0.55 (14) S68H2-18 2-1/8" 1.22 (31)
S66M22L 22mm 0.75 (19) S66M24U 24mm 0.55 (14) S68H2-316 2-3/16" 1.22 (31)
S66M23L 23mm 0.75 (19) S66M25U 25mm 0.55 (14) S68H2-14 2-1/4" 1.34 (34)
S66M24L 24mm 0.75 (19) S66M26U 26mm 0.67 (17) S68H2-516 2-5/16" 1.34 (34)
S66M25L 25mm 0.75 (19) S66M27U 27mm 0.67 (17) S68H2-38 2-3/8" 1.34 (34)
S66M26L 26mm 0.87 (22) S66M28U 28mm 0.67 (17) S68H2-716 2-7/16" 1.42 (36)
S66M27L 27mm 0.87 (22) S66M29U 29mm 0.67 (17) S68H2-12 2-1/2" 1.42 (36)
S66M28L 28mm 0.87 (22) S66M30U 30mm 0.67 (17) S68H2-916 2-9/16" 1.42 (36)
S66M29L 29mm 0.87 (22) S66M31U 31mm 0.83 (21) S68H2-58 2-5/8" 1.5 (38)
S66M30L 30mm 0.87 (22) S66M32U 32mm 0.83 (21) S68H2-1116 2-11/16" 1.5 (38)
S66M31L 31mm 0.87 (22) S66M33U 33mm 0.83 (21) S68H2-34 2-3/4" 1.5 (38)
S66M32L 32mm 0.87 (22) S66M34U 34mm 0.83 (21) S68H2-1316 2-13/16" 1.61 (41)
S66M33L 33mm 0.98 (25) S66M35U 35mm 0.83 (21) S68H2-78 2-7/8" 1.61 (41)
S66M34L 34mm 0.98 (25) S66M36U 36mm 0.91 (23) S68H2-1516 2-15/16" 1.61 (41)
S66M35L 35mm 0.98 (25) S66M37U 37mm 0.91 (23) S68H3 3" 1.73 (44)
S66M36L 36mm 0.98 (25) S66M38U 38mm 0.91 (23) S68H3-18 3-1/8" 1.73 (44)
S66M38L 38mm 0.98 (25) S66M39U 39mm 0.91 (23) S68H3-14 3-1/4" 1.73 (44)
S66M40L 40mm 1.18 (30) S66M40U 40mm 0.91 (23) S68H3-38 3-3/8" 1.93 (49)
S66M41L 41mm 1.18 (30) S66M41U 41mm 1.02 (26) S68H3-12 3-1/2" 1.93 (49)
S66M42L 42mm 1.18 (30) S66M42U 42mm 1.02 (26) S68H3-58 3-5/8" 2.09 (53)
S66M43L 43mm 1.18 (30) S66M43U 43mm 1.02 (26) S68H3-34 3-3/4" 2.09 (53)
S66M44L 44mm 1.18 (30) S66M44U 44mm 1.14 (29) S68H3-78 3-7/8" 2.2 (56)
S66M46L 46mm 1.18 (30) S66M45U 45mm 1.14 (29) S68H4 4" 2.2 (56)
S66M50L 50mm 1.18 (30) S66M46U 46mm 1.14 (29) S68H4-18 4-1/8" 2.32 (59)
球形深-内六角 S68H4-14 4-1/4" 2.32 (59)
S66H1116U 11/16" 0.51 (13) S68H4-38 4-3/8" 2.4 (61)
S66H34U 3/4" 0.51 (13) 动力套筒1" 方寸驱动头 S68H4-12 4-1/2" 2.4 (61)
