We Make Connections EZ! Test & Measurement

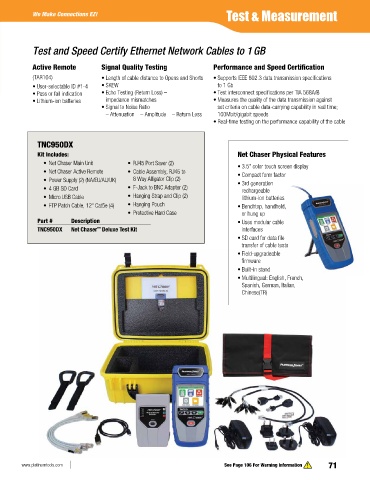

Test and Speed Certify Ethernet Network Cables to 1GB

Active Remote Signal Quality Testing Performance and Speed Certification
(TAR104) • Length of cable distance to Opens and Shorts • Supports IEEE 802.3 data transmission specifications
• User-selectable ID #1-4 • SKEW to 1 Gb
• Pass or fail indication • Echo Testing (Return Loss) – • Test interconnect specifications per TIA 568A/B
• Lithium-ion batteries impedance mismatches • Measures the quality of the data transmission against
• Signal to Noise Ratio set criteria on cable data-carrying capability in real time;
– Attenuation – Amplitude – Return Loss 100Mbit/gigabit speeds
• Real-time testing on the performance capability of the cable

TNC950DX
Kit Includes: Net Chaser Physical Features
• Net Chaser Main Unit • RJ45 Port Saver (2) • 3.5" color touch screen display
• Net Chaser Active Remote • Cable Assembly, RJ45 to • Compact form factor
• Power Supply (2) (NA/EU/AU/UK) 8 Way Alligator Clip (2) • 3rd generation
• 4 GB SD Card • F-Jack to BNC Adapter (2) rechargeable
• Micro USB Cable • Hanging Strap and Clip (2) lithium-ion batteries
• FTP Patch Cable, 12” Cat5e (4) • Hanging Pouch • Benchtop, handheld,
• Protective Hard Case or hung up
Part # Description • Uses modular cable
TNC950DX Net Chaser Deluxe Test Kit interfaces
™
• SD card for data file
transfer of cable tests
• Field-upgradeable
firmware
• Built-in stand
• Multilingual: English, French,
Spanish, German, Italian,
Chinese(TR)

www.platinumtools.com See Page 106 For Warning Information 71
