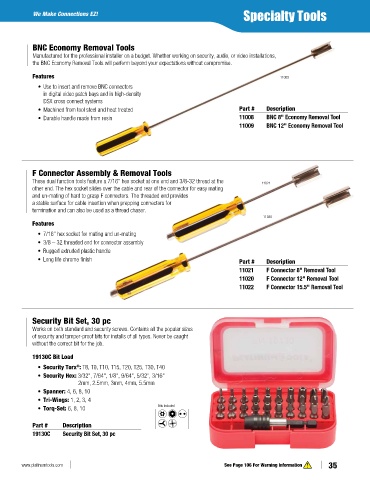

Page 37 - PlatinumTools端子光纤工具

Specialty Tools
We Make Connections EZ!

BNC Economy Removal Tools
Manufactured for the professional installer on a budget. Whether working on security, audio, or video installations,
the BNC Economy Removal Tools will perform beyond your expectations without compromise.

Features 11009
• Use to insert and remove BNC connectors
in digital video patch bays and in high-density
DSX cross connect systems
• Machined from tool steel and heat treated Part # Description
• Durable handle made from resin 11008 BNC 8" Economy Removal Tool
11009 BNC 12" Economy Removal Tool

F Connector Assembly & Removal Tools
These dual function tools feature a 7/16” hex socket at one end and 3/8-32 thread at the 11021
other end. The hex socket slides over the cable and rear of the connector for easy mating
and un-mating of hard to grasp F connectors. The threaded end provides
a stable surface for cable insertion when prepping connectors for
termination and can also be used as a thread chaser.
11020
Features

• 7/16" hex socket for mating and un-mating
• 3/8 – 32 threaded end for connector assembly
• Rugged extruded plastic handle
• Long life chrome finish Part # Description
11021 F Connector 8" Removal Tool
11020 F Connector 12" Removal Tool
11022 F Connector 15.5" Removal Tool

Security Bit Set, 30 pc
Works on both standard and security screws. Contains all the popular sizes
of security and tamper-proof bits for installs of all types. Never be caught
without the correct bit for the job.

19130C Bit Load
• Security Torx : T8, T9, T10, T15, T20, T25, T30, T40
®
• Security Hex: 3/32", 7/64", 1/8", 9/64", 5/32", 3/16"
2mm, 2.5mm, 3mm, 4mm, 5.5mm

• Spanner: 4, 6, 8, 10
• Tri-Wings: 1, 2, 3, 4
• Torq-Set: 6, 8, 10 Bits Included

Part # Description
19130C Security Bit Set, 30 pc

www.platinumtools.com See Page 106 For Warning Information 35
