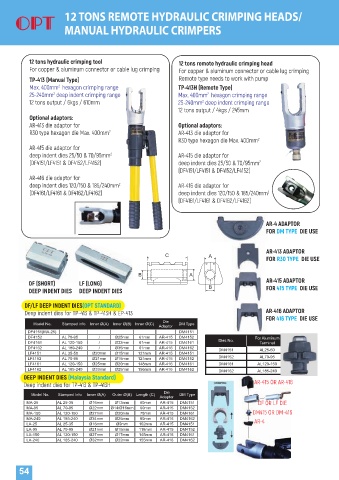

12 TONS REMOTE HYDRAULIC CRIMPING HEADS/

MANUAL HYDRAULIC CRIMPERS

12 tons hydraulic crimping tool 12 tons remote hydraulic crimping head
For copper & aluminum connector or cable lug crimping For copper & aluminum connector or cable lug crimping

TP-413 (Manual Type) Remote type needs to work with pump
Max. 400mm hexagon crimping range TP-413H (Remote Type)
2
2
25-240mm deep indent crimping range Max. 400mm hexagon crimping range
2
12 tons output / 6kgs / 610mm 25-240mm deep indent crimping range
2
12 tons output / 4kgs / 245mm
Optional adaptors:
AR-413 die adaptor for Optional adaptors:
R30 type hexagon die Max. 400mm 2 AR-413 die adaptor for
R30 type hexagon die Max. 400mm 2
AR-415 die adaptor for
deep indent dies 25/50 & 70/95mm 2 AR-415 die adaptor for
(DF4151/LF4151 & DF4152/LF4152) deep indent dies 25/50 & 70/95mm 2
(DF4151/LF4151 & DF4152/LF4152)
AR-416 die adaptor for
deep indent dies 120/150 & 185/240mm 2 AR-416 die adaptor for
(DF4161/LF4161 & DF4162/LF4162) deep indent dies 120/150 & 185/240mm 2
(DF4161/LF4161 & DF4162/LF4162)

AR-4 ADAPTOR
FOR DM TYPE DIE USE

AR-413 ADAPTOR
FOR R30 TYPE DIE USE

DF (SHORT) LF (LONG) AR-415 ADAPTOR
DEEP INDENT DIES DEEP INDENT DIES FOR 415 TYPE DIE USE

DF/LF DEEP INDENT DIES(OPT STANDARD)
Deep indent dies for TP-413 & TP-413H & EP-413 AR-416 ADAPTOR
Die FOR 416 TYPE DIE USE
Model No. Stamped info Inner Ø(A) Inner Ø(B) Inner Ø(C) DM Type
Adaptor
DF4151(MA-25) DM4151
DF4152 AL 70-95 / Ø25mm 61mm AR-415 DM4152 For Aluminum
DF4161 AL 120-150 / Ø32mm 61mm AR-415 DM4161 Dies No. Terminal
DF4162 AL 180-240 / Ø35mm 61mm AR-416 DM4162 DM4151 AL25-50
LF4151 AL 35-50 Ø20mm Ø15mm 121mm AR-415 DM4151
LF4152 AL 70-95 Ø21mm Ø15mm 121mm AR-415 DM4152 DM4152 AL70-95
LF4161 AL 120-150 Ø25mm Ø20mm 148mm AR-416 DM4161 DM4161 AL120-150
LF4162 AL 185-240 Ø33mm Ø25mm 156mm AR-416 DM4162 DM4162 AL185-240
DEEP INDENT DIES (Malaysia Standard)
Deep indent dies for TP-413 & TP-413H AR-415 OR AR-416
Die
Model No. Stamped Info Inner Ø(A) Outer Ø(B) Length (C) DM Type
Adaptor
MA-25 AL 25-35 Ø16mm Ø13mm 60mm AR-415 DM4151 DF OR LF DIE
MA-95 AL 70-95 Ø22mm Ø14/Ø16mm 60mm AR-415 DM4152
MA-150 AL 120-150 Ø27mm Ø20mm 78mm AR-415 DM4161 DM415 OR DM-416
MA-240 AL 185-240 Ø34mm Ø25mm 80mm AR-416 DM4162 AR-4
LA-25 AL 25-35 Ø16mm Ø9mm 102mm AR-415 DM4151
LA-95 AL 70-95 Ø21mm Ø15mm 118mm AR-415 DM4152
LA-150 AL 120-150 Ø27mm Ø17mm 145mm AR-416 DM4161
LA-240 AL 185-240 Ø32mm Ø22mm 155mm AR-416 DM4162

54
