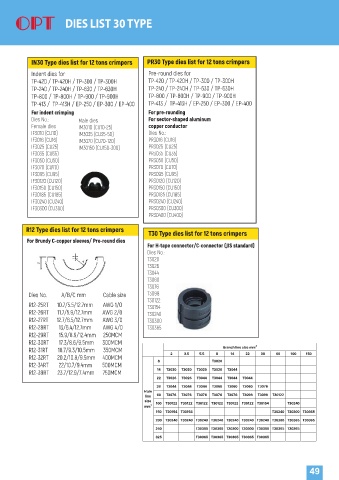

DIES LIST 30 TYPE

IN30 Type dies list for 12 tons crimpers PR30 Type dies list for 12 tons crimpers
Indent dies for Pre-round dies for
TP-420 / TP-420H / TP-300 / TP-300H TP-420 / TP-420H / TP-300 / TP-300H
TP-240 / TP-240H / TP-630 / TP-630H TP-240 / TP-240H / TP-630 / TP-630H
TP-800 / TP-800H / TP-900 / TP-900H TP-800 / TP-800H / TP-900 / TP-900H
TP-413 / TP-413H / EP-250 / EP-300 / EP-400 TP-413 / TP-413H / EP-250 / EP-300 / EP-400
For indent crimping For pre-rounding
Dies No.: Male dies For sector-shaped aluminum
Female dies IM3010 (CU10-25) copper conductor
IF3010 (CU10) IM3035 (CU35-50) Dies No.:
IF3016 (CU16) IM3070 (CU70-120) PR3016 (CU16)
IF3025 (CU25) IM30150 (CU150-300) PR3025 (CU25)
IF3035 (CU35) PR3035 (CU35)
IF3050 (CU50) PR3050 (CU50)
IF3070 (CU70) PR3070 (CU70)
IF3095 (CU95) PR3095 (CU95)
IF30120 (CU120) PR30120 (CU120)
IF30150 (CU150) PR30150 (CU150)
IF30185 (CU185) PR30185 (CU185)
IF30240 (CU240) PR30240 (CU240)
IF30300 (CU300) PR30300 (CU300)
PR30400 (CU400)

R12 Type dies list for 12 tons crimpers
T30 Type dies list for 12 tons crimpers
For Brundy C-copper sleeves/ Pre-round dies
For H-tape connector/C-connector (JIS standard)
Dies No.:
T3020
T3026
T3044
T3060
T3076
Dies No. A/B/C mm Cable size T3098
T30122
R12-25RT 10.7/5.5/12.7mm AWG 1/0 T30154
R12-26RT 11.7/5.9/12.7mm AWG 2/0 T30240
R12-27RT 12.7/6.5/12.7mm AWG 3/0 T30300
R12-28RT 13/6.4/12.7mm AWG 4/0 T30365
R12-29RT 15.9/8.9/12.4mm 250MCM
R12-30RT 17.3/8.6/9.5mm 300MCM 2
R12-31RT 18.7/9.3/10.5mm 350MCM 2 3.5 5.5 8 Branch line size mm 38 60 100 150
22
14
R12-32RT 20.2/10.8/9.5mm 400MCM 8 T3020
R12-34RT 22/10.7/9.4mm 500MCM
R12-39RT 23.7/12.9/7.4mm 750MCM 14 T3020 T3020 T3020 T3026 T3044
22 T3026 T3026 T3044 T3044 T3044 T3044
38 T3044 T3044 T3044 T3060 T3060 T3060 T3076
Main
line 60 T3076 T3076 T3076 T3076 T3076 T3098 T3098 T30122
size 100 T30122 T30122 T30122 T30122 T30122 T30122 T30154 T30240
mm 2
150 T30154 T30154 T30240 T30300 T30365
200 T30240 T30240 T30240 T30240 T30240 T30240 T30240 T30300 T30365 T30365
250 T30300 T30300 T30300 T30300 T30300 T30365 T30365
325 T30365 T30365 T30365 T30365 T30365

49
