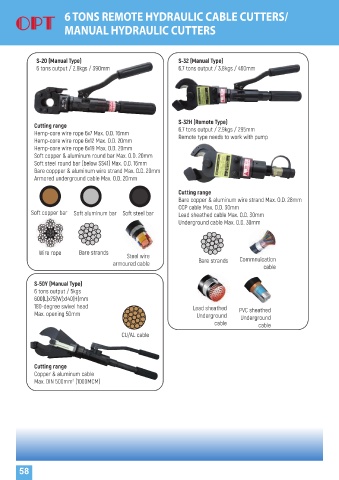

6 TONS REMOTE HYDRAULIC CABLE CUTTERS/

MANUAL HYDRAULIC CUTTERS

S-20 (Manual Type) S-32 (Manual Type)
6 tons output / 2.8kgs / 390mm 6.7 tons output / 3.8kgs / 460mm

S-32H (Remote Type)
Cutting range
Hemp-core wire rope 6x7 Max. O.D. 16mm 6.7 tons output / 2.9kgs / 295mm
Hemp-core wire rope 6x12 Max. O.D. 20mm Remote type needs to work with pump
Hemp-core wire rope 6x19 Max. O.D. 20mm
Soft copper & aluminum round bar Max. O.D. 20mm
Soft steel round bar (below SS41) Max. O.D. 16mm
Bare coppper & aluminum wire strand Max. O.D. 20mm
Armored underground cable Max. O.D. 20mm

Cutting range
Bare copper & aluminum wire strand Max. O.D. 28mm
CCP cable Max. O.D. 30mm
Soft copper bar Soft aluminum bar Soft steel bar Lead sheathed cable Max. O.D. 30mm
Underground cable Max. O.D. 30mm

Wire rope Bare strands
Steel wire Commnuication
armoured cable Bare strands
cable

S-50Y (Manual Type)
6 tons output / 5kgs
600(L)x75(W)x140(H)mm
180-degree swivel head Lead sheathed PVC sheathed
Max. opening 50mm Underground Underground
cable cable

CU/AL cable

Cutting range
Copper & aluminum cable
Max. DIN 500mm (1000MCM)
