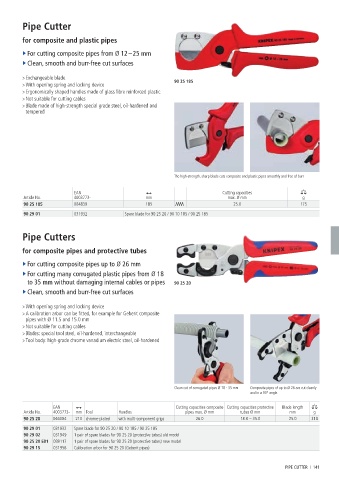

Pipe Cutter

for composite and plastic pipes

► For cutting composite pipes from Ø 12 – 25 mm
► Clean, smooth and burr-free cut surfaces

> Exchangeable blade
> With opening spring and locking device 90 25 185
> Ergonomically shaped handles made of glass fibre reinforced plastic
> Not suitable for cutting cables
> Blade made of high-strength special grade steel, oil-hardened and
tempered

The high-strength, sharp blade cuts composite and plastic pipes smoothly and free of burr

EAN Cutting capacities
Article No. 4003773- mm max. Ø mm g
90 25 185 084839 185 25.0 175
90 29 01 031932 Spare blade for 90 25 20 / 90 10 185 / 90 25 185

Pipe Cutters

for composite pipes and protective tubes

► For cutting composite pipes up to Ø 26 mm
► For cutting many corrugated plastic pipes from Ø 18
to 35 mm without damaging internal cables or pipes 90 25 20
► Clean, smooth and burr-free cut surfaces

> With opening spring and locking device
> A calibration arbor can be fitted, for example for Geberit composite
pipes with Ø 11.5 and 15.0 mm
> Not suitable for cutting cables
> Blades: special tool steel, oil-hardened, interchangeable
> Tool body: high-grade chrome vanadium electric steel, oil-hardened

Clean cut of corrugated pipes Ø 18 - 35 mm Composite pipes of up to Ø 26 are cut cleanly
and in a 90° angle

EAN Cutting capacities composite Cutting capacities protective Blade length
Article No. 4003773- mm Tool Handles pipes max. Ø mm tubes Ø mm mm g
90 25 20 046004 210 chrome-plated with multi-component grips 26.0 18.0 – 35.0 25.0 318
90 29 01 031932 Spare blade for 90 25 20 / 90 10 185 / 90 25 185
90 29 02 031949 1 pair of spare blades for 90 25 20 (protective tubes) old model
90 25 20 E01 089117 1 pair of spare blades for 90 25 20 (protective tubes) new model
90 29 15 031956 Calibration arbor for 90 25 20 (Geberit pipes)

PIPE CUTTER I 141
