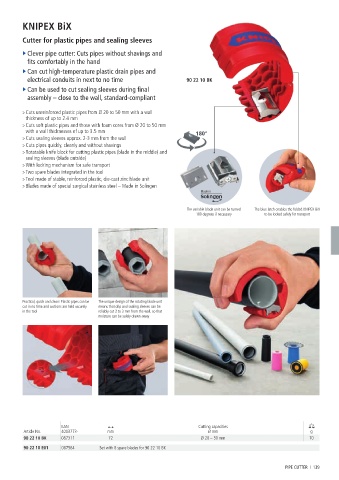

Page 139 - 凯尼派克英文通用样本2024knipex

KNIPEX BiX

Cutter for plastic pipes and sealing sleeves

► Clever pipe cutter: Cuts pipes without shavings and
fits comfortably in the hand
► Can cut high-temperature plastic drain pipes and
electrical conduits in next to no time 90 22 10 BK
► Can be used to cut sealing sleeves during final
assembly – close to the wall, standard-compliant

> Cuts unreinforced plastic pipes from Ø 20 to 50 mm with a wall
thickness of up to 2.4 mm
> Cuts soft plastic pipes and those with foam cores from Ø 20 to 50 mm
with a wall thicknesses of up to 3.5 mm 180°
> Cuts sealing sleeves approx. 2-3 mm from the wall
> Cuts pipes quickly, cleanly and without shavings
> Rotatable knife block for cutting plastic pipes (blade in the middle) and
sealing sleeves (blade outside)
> With locking mechanism for safe transport
> Two spare blades integrated in the tool
> Tool made of stable, reinforced plastic, die-cast zinc blade unit
> Blades made of special surgical stainless steel – Made in Solingen
Made in

The variable blade unit can be turned The blue latch enables the folded KNIPEX BiX
180 degrees if necessary to be locked safely for transport

Practical, quick and clean: Plastic pipes can be The unique design of the rotating blade unit
cut in no time and sections are held securely means that drip and sealing sleeves can be
in the tool reliably cut 2 to 3 mm from the wall, so that
moisture can be safely drawn away

EAN Cutting capacities
Article No. 4003773- mm Ø mm g
90 22 10 BK 087311 72 Ø 20 – 50 mm 70

90 22 10 E01 087564 Set with 8 spare blades for 90 22 10 BK

PIPE CUTTER I 139
