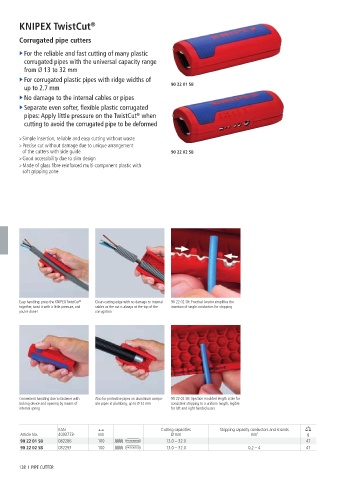

KNIPEX TwistCut

Corrugated pipe cutters

► For the reliable and fast cutting of many plastic
corrugated pipes with the universal capacity range
from Ø 13 to 32 mm

► For corrugated plastic pipes with ridge widths of
up to 2.7 mm 90 22 01 SB
► No damage to the internal cables or pipes

► Separate even softer, flexible plastic corrugated
pipes: Apply little pressure on the TwistCut when
®
cutting to avoid the corrugated pipe to be deformed

> Simple insertion, reliable and easy cutting without waste
> Precise cut without damage due to unique arrangement
of the cutters with side guide 90 22 02 SB
> Good accessibility due to slim design
> Made of glass fibre reinforced multi-component plastic with
soft gripping zone

Easy handling: press the KNIPEX TwistCut Clean cutting edge with no damage to internal 90 22 02 SB: Practical locator simplifies the
®
together, twist it with a little pressure, and cables as the cut is always at the top of the insertion of single conductors for stripping
you're done! corrugation

Convenient handling due to fastener with Also for protective pipes on aluminium compo- 90 22 02 SB: Injection moulded length scale for
locking device and opening by means of site pipes in plumbing, up to Ø 32 mm consistent stripping to a uniform length, legible
internal spring for left and right handed users

EAN Cutting capacities Stripping capacity conductors and strands
Article No. 4003773- mm Ø mm mm ² g
90 22 01 SB 082286 100 13.0 – 32.0 47
90 22 02 SB 082293 100 13.0 – 32.0 0.2 – 4 47

138 I PIPE CUTTER
