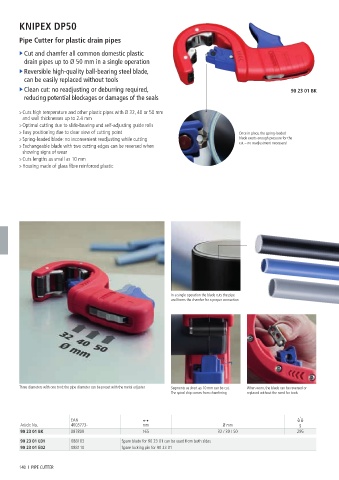

KNIPEX DP50

Pipe Cutter for plastic drain pipes

► Cut and chamfer all common domestic plastic
drain pipes up to Ø 50 mm in a single operation
► Reversible high-quality ball-bearing steel blade,
can be easily replaced without tools
► Clean cut: no readjusting or deburring required, 90 23 01 BK
reducing potential blockages or damages of the seals

> Cuts high temperature and other plastic pipes with Ø 32, 40 or 50 mm
and wall thicknesses up to 2.4 mm
> Optimal cutting due to slide-bearing and self-adjusting guide rolls
> Easy positioning due to clear view of cutting point Once in place, the spring-loaded
> Spring-loaded blade: no inconvenient readjusting while cutting blade exerts enough pressure for the
> Exchangeable blade with two cutting edges can be reversed when cut – no readjustment necessary!
showing signs of wear
> Cuts lengths as small as 10 mm
> Housing made of glass fibre reinforced plastic

In a single operation the blade cuts the pipe
and forms the chamfer for a proper connection

Three diameters with one tool: the pipe diameter can be preset with the metal adjuster Segments as short as 10 mm can be cut. When worn, the blade can be reversed or
The spiral chip comes from chamfering replaced without the need for tools

EAN
Article No. 4003773- mm Ø mm g
90 23 01 BK 087809 165 32 / 30 / 50 295
90 23 01 E01 088103 Spare blade for 90 23 01 can be used from both sides
90 23 01 E02 088110 Spare locking pin for 90 23 01

140 I PIPE CUTTER
