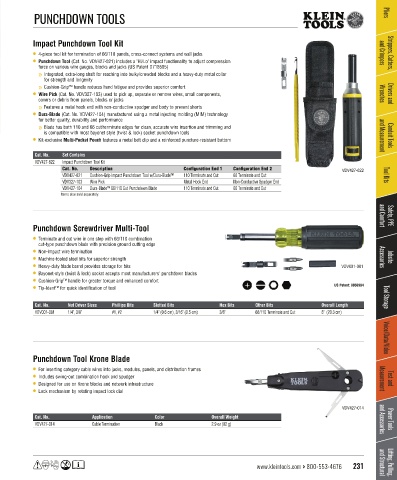

Page 233 - 凯能全英文KleinTools Catalog 167

PUNCHDOWN TOOLS Pliers

Impact Punchdown Tool Kit
• 4-piece tool kit for termination of 66/110 panels, cross-connect systems and wall jacks and Crimpers Strippers, Cutters,
• Punchdown Tool (Cat. No. VDV427-821) includes a "Hi/Lo" impact functionality to adjust compression
force on various wire gauges, blocks and jacks (US Patent D718585)
» Integrated, extra-long shaft for reaching into bulky/crowded blocks and a heavy-duty metal collar
for strength and longevity
» Cushion-Grip™ handle reduces hand fatigue and provides superior comfort
• Wire Pick (Cat. No. VDV327-103) used to pick up, separate or remove wires, small components, Wrenches Drivers and
covers or debris from panels, blocks or jacks
» Features a metal hook end with non-conductive spodger and body to prevent shorts
• Dura-Blade (Cat. No. VDV427-104) manufactured using a metal injecting molding (MIM) technology
for better quality, durability and performance
» Blade has both 110 and 66 cut/terminate edges for clean, accurate wire insertion and trimming and
is compatible with most bayonet style (twist & lock) socket punchdown tools and Measurement Conduit Tools
• Kit-exclusive Multi-Pocket Pouch features a metal belt clip and a reinforced puncture-resistant bottom

Cat. No. Set Contains
VDV427-822 Impact Punchdown Tool Kit
Cat. No. Description Configuration End 1 Configuration End 2 VDV427-822

VDV427-821 Cushion-Grip Impact Punchdown Tool w/Dura-Blade™ 110 Terminate and Cut 66 Terminate and Cut Tool Kits
VDV327-103 Wire Pick Metal Hook End Non-Conductive Spudger End
VDV427-104 Dura-Blade™ 66/110 Cut Punchdown Blade 110 Terminate and Cut 66 Terminate and Cut
Items also sold separately.

Punchdown Screwdriver Multi-Tool and Comfort Safety, PPE
• Terminate and cut wire in one step with 66/110 combination
cut-type punchdown blade with precision ground cutting edge
• Non-impact wire termination
• Machine-tooled steel bits for superior strength Accessories Jobsite
• Heavy-duty blade barrel provides storage for bits VDV001-081
• Bayonet-style (twist & lock) socket accepts most manufacturers' punchdown blades
• Cushion-Grip™ handle for greater torque and enhanced comfort
• Tip-Ident™ for quick identification of tool US Patent: 8856994

Cat. No. Nut Driver Sizes Phillips Bits Slotted Bits Hex Bits Other Bits Overall Length Tool Storage
VDV001-081 1/4", 3/8" #1, #2 1/4" (0.6 cm), 3/16" (0.5 cm) 3/8" 66/110 Terminate and Cut 8" (20.3 cm)

Punchdown Tool Krone Blade Voice/Data/Video

• For inserting category cable wires into jacks, modules, panels, and distribution frames
• Includes swing-out combination hook and spudger Measurement Test and
• Designed for use on Krone blocks and network infrastructure
• Lock mechanism by rotating impact lock dial

VDV427-014
Cat. No. Application Color Overall Weight and Accessories Power Tools
VDV427-014 Cable Termination Black 2.9 oz (82 g)

www.kleintools.com > 800-553-4676 231 and Structural Lifting, Pulling,
