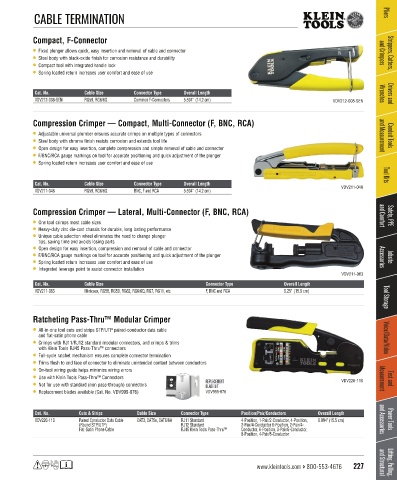

CABLE TERMINATION Pliers

Compact, F-Connector
• Fixed plunger allows quick, easy insertion and removal of cable and connector and Crimpers Strippers, Cutters,
• Steel body with black-oxide finish for corrosion resistance and durability
• Compact tool with integrated handle lock
• Spring loaded return increases user comfort and ease of use

Cat. No. Cable Size Connector Type Overall Length Wrenches Drivers and
VDV212-008-SEN RG59, RG6/6Q Common F-Connectors 5.594" (14.2 cm) VDV212-008-SEN

Compression Crimper — Compact, Multi-Connector (F, BNC, RCA)
• Adjustable universal plumber ensures accurate crimps on multiple types of connectors and Measurement Conduit Tools
• Steel body with chrome finish resists corrosion and extends tool life
• Open design for easy insertion, complete compression and simple removal of cable and connector
• F/BNC/RCA gauge markings on tool for accurate positioning and quick adjustment of the plunger
• Spring loaded return increases user comfort and ease of use

Cat. No. Cable Size Connector Type Overall Length Tool Kits
VDV211-048
VDV211-048 RG59, RG6/6Q BNC, F and RCA 5.594" (14.2 cm)

Compression Crimper — Lateral, Multi-Connector (F, BNC, RCA) and Comfort Safety, PPE
• One tool crimps most cable sizes
• Heavy-duty zinc die-cast chassis for durable, long lasting performance
• Unique cable selection wheel eliminates the need to change plunger
tips, saving time and avoids losing parts
• Open design for easy insertion, compression and removal of cable and connector
• F/BNC/RCA gauge markings on tool for accurate positioning and quick adjustment of the plunger Accessories Jobsite
• Spring loaded return increases user comfort and ease of use
• Integrated leverage point to assist connector installation
VDV211-063
Cat. No. Cable Size Connector Type Overall Length
VDV211-063 Minicoax, RG58, RG59, RG62, RG6/6Q, RG7, RG11, etc. F, BNC and RCA 6.25" (15.9 cm) Tool Storage

Ratcheting Pass-Thru™ Modular Crimper
• All-in-one tool cuts and strips STP/UTP paired-conductor data cable
and flat-satin phone cable Voice/Data/Video
• Crimps with RJ11/RJ12 standard modular connectors, and crimps & trims
with Klein Tools RJ45 Pass-Thru connectors
TM
• Full-cycle ratchet mechanism ensures complete connector termination
• Trims flush to end face of connector to eliminate unintended contact between conductors
• On-tool wiring guide helps minimize wiring errors
• Use with Klein Tools Pass-Thru™ Connectors VDV226-110 Measurement Test and
• Not for use with standard (non pass-through) connectors REPLACEMENT
BLADE KIT
• Replacement blades available (Cat. No. VDV999-076) VDV999-076

Cat. No. Cuts & Strips Cable Size Connector Type Position/Pair/Conductors Overall Length
VDV226-110 Paired Conductor Data Cable CAT3, CAT5e, CAT6/6A RJ11 Standard 4-Position, 1-Pair/2-Conductor, 4-Position, 6.094" (15.5 cm) and Accessories Power Tools
(Round STP/UTP) RJ12 Standard 2-Pair/4-Conductor 6-Position, 2-Pair/4-
Flat-Satin Phone Cable RJ45 Klein Tools Pass-Thru™ Conductor, 6-Position, 3-Pair/6-Conductor,
8-Position, 4-Pair/8-Conductor
