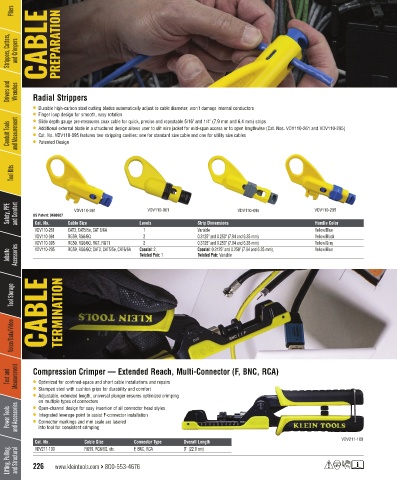

Page 228 - 凯能全英文KleinTools Catalog 167

Pliers

Strippers, Cutters, and Crimpers CABLE PREPARATION

Drivers and Wrenches Radial Strippers

• Durable high-carbon steel cutting blades automatically adjust to cable diameter; won't damage internal conductors
• Finger loop design for smooth, easy rotation
•
Slide depth gauge pre-measures coax cable for quick, precise and repeatable 5/16" and 1/4" (7.9 mm and 6.4 mm) strips
Conduit Tools and Measurement • Additional external blade in a structured design allows user to slit wire jacket for mid-span access or to open lengthwise (Cat. Nos. VDV110-261 and VDV110-295)
•
Cat. No. VDV110-095 features two stripping cavities: one for standard size cable and one for utility size cables
•
Patented Design

Tool Kits

Safety, PPE and Comfort US Patent: D688927 VDV110-261 VDV110-061 VDV110-095 VDV110-295

Cat. No.
VDV110-261 Cable Size Levels Strip Dimensions Handle Color
Yellow/Blue
CAT3, CAT5/5e, CAT 6/6A
1
Variable
VDV110-061 RG59, RG6/6Q 2 0.3125" and 0.250" (7.94 and 6.35 mm) Yellow/Black
VDV110-095 RG59, RG6/6Q, RG7, RG11 2 0.3125" and 0.250" (7.94 and 6.35 mm) Yellow/Gray
Jobsite Accessories VDV110-295 RG59, RG6/6Q; CAT3, CAT5/5e, CAT6/6A Coaxial: 2, Coaxial: 0.3125" and 0.250" (7.94 and 6.35 mm), Yellow/Blue
Twisted Pair: 1
Twisted Pair: Variable

Tool Storage CABLE TERMINATION

Voice/Data/Video

Test and Measurement Compression Crimper — Extended Reach, Multi-Connector (F, BNC, RCA)
•
Optimized for confined-space and short cable installations and repairs
•
• Stamped steel with cushion grips for durability and comfort
Adjustable, extended length, universal plunger ensures optimized crimping
on multiple types of connectors
•
Power Tools and Accessories • Integrated leverage point to assist F-connector installation
Open-channel design for easy insertion of all connector head styles
•
Connector markings and mm scale are lasered
into tool for consistent crimping
VDV211-100
Cat. No. Cable Size Connector Type Overall Length
Lifting, Pulling, and Structural 226 www.kleintools.com > 800-553-4676
F, BNC, RCA
RG59, RG6/6Q, etc.
9" (22.9 cm)
VDV211-100
