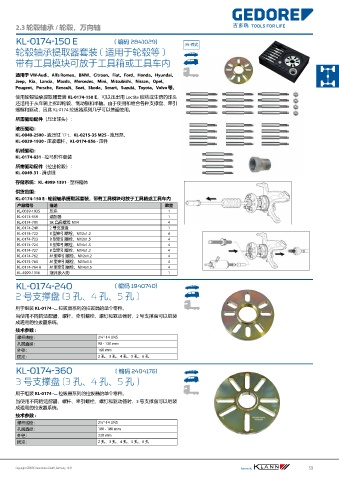

       2.3 Wheel Bearings, Wheel Hubs and Drive Shaft
       2.3 轮毂轴承 / 轮毂,万向轴
       KL-0174-150 E                    (Code 2841029)            35 pcs.              KL-0174-150 E
                                         ( 编码 2841029)
                                                                  35 件式
       Puller Set (for Wheel Hubs etc.),
      轮毂轴承提取器套装 ( 适用于轮毂等 )
      带有工具模块可放于工具箱或工具车内
       in a Foam Insert
       Suitable for VW-Audi, Alfa Romeo, BMW, Citroën, Fiat, Ford, Honda, Hyundai,
      适用于 VW-Audi、Alfa Romeo、BMW、Citroen、Fiat、Ford、Honda、Hyundai、
       Jeep, KIA, Lancia, Mazda, Mercedes, Mini, Mitsubishi, Nissan, Opel/Vauxhall,
      Jeep、Kia、Lancia、Mazda、Mercedes、Mini、Mitsubishi、Nissan、Opel、
       Peugeot, Porsche, Renault, Seat, Škoda, Smart, Suzuki, Toyota, Volvo etc.
      Peugeot、Porsche、Renault、Seat、Skoda、Smart、Suzuki、Toyota、Volvo 等。
       The Puller Set KL-0174-150 E is designed for the removal of drive shafts that are
      使用轮毂轴承提取器套装 KL-0174-150 E,可以压出用 Loctite 胶粘或生锈的球头
       bonded with Loctite or stuck due to corrosion. The use of a slide hammer allows the
      还适用于从车辆上拆卸轮毂、制动鼓和半轴。由于使用和组合各种支撑盘、牵引
       removal of wheel hubs, brake drums and half shafts to be performed in-situ on the
       vehicle. Due to various combination possibilities and the use of different puller plates,
      螺栓和驱动,因此 KL-0174 拉拔器系列几乎可以普遍使用。
       puller bolts and drives, the field of application of the KL-0174 Puller Series is almost
      所需驱动配件(压出球头):
       universal.
      液压驱动:
       Necessary Drive Parts (removal of drive shafts):
      KL-0040-2500 - 液压缸 17 t,KL-0215-35 M25 - 液压泵,
       Hydraulic Drive:
      KL-0039-1930 - 压紧螺杆,KL-0174-856 - 压件
       KL-0040-2500 Hydraulic Cylinder (17t), KL-0215-35 M25 Hydraulic Pump,
       KL-0039-1930 Pressure Spindle, KL-0174-856 Thrust Piece
      机械驱动:
       Mechanical Drive: KL-0174-831 Mechanical Drive Set
      KL-0174-831 - 拉马附件套装
       Necessary Drive Parts (removal of wheel hubs):
      所需驱动配件(拉出轮毂):
       KL-0049-31 Slide Hammer
      KL-0049-31 - 滑动锤
       Tool Storage System: KL-4999-1391 Plastic Storage Case
      存储系统:KL-4999-1391 - 塑料箱体
       Scope of Delivery:
      供货范围:
       KL-0174-150 E Puller Set (for Wheel Hubs etc.), in a Foam Insert
      KL-0174-150 E - 轮毂轴承提取器套装,带有工具模块可放于工具箱或工具车内
                                                           Qty
                   Description
       Part No.
                   Thrust Piece
       KL-0039-1935  描述                                     1 数量
       产品编号
       KL-0174-559  压块                                      1 1
                   Adaptor
       KL-0039-1935
                   Hex Shoulder Nut M14
       KL-0174-701  适配器                                     4 1
       KL-0174-559
       KL-0174-240  SK 凸肩螺母 M14                             1 4
                   Puller Plate, Size 2 (3-, 4- and 5-hole)
       KL-0174-701
                   Puller Bolt Type B, M12x1.25
       KL-0174-722  2 号支撑盘                                  4 1
       KL-0174-240
       KL-0174-722  B 型牵引螺栓,M12x1.2                         4 4
                   Puller Bolt Type B, M12x1.5
       KL-0174-723
       KL-0174-724
                   Puller Bolt Type B, M14x1.5
       KL-0174-723  B 型牵引螺栓,M12x1.5                         4 4
       KL-0174-724  B 型牵引螺栓,M14x1.5                         4 4
       KL-0174-727
                   Puller Bolt Type B, M14x1.25
       KL-0174-762  B 型牵引螺栓,M14x1.2                         4 4
       KL-0174-727
                   Puller Bolt Type M, M12x1.25
       KL-0174-762  M 型牵引螺栓,M12x1.2                         4 4
                   Puller Bolt Type M, M12x1.5
       KL-0174-763
       KL-0174-763  M 型牵引螺栓,M15x1.5                         4 4
                   Puller Bolt Type M, M14x1.5
       KL-0174-764  A
       KL-0174-764 A  M 型牵引螺栓,M14x1.5                       1 4
                   Foam Insert
       KL-4999-1316
       KL-4999-1316  泡沫嵌入物                                  1
       KL-0174-240                      (Code 1940740)                                 KL-0174-240
                                         ( 编码 1940740)
      2 号支撑盘 (3 孔、4 孔、5 孔 )
       Puller Plate, Size 2 (3-, 4- and 5-hole)
      用于组装 KL-0174 -... 拉拔器系列的拉拔器的单个零件。
       Component for the assembly of a Puller from the Puller-Series KL-0174-...
       The puller plate (size 2) can be assembled to an all-purpose puller system by using
      当使用不同的适配器、螺杆、牵引螺栓、螺钉和驱动器时,2 号支撑盘可以组装
       different adaptors, spindles, puller bolts, screws and drives.
      成通用的拉拔器系统。
       Technical Data:
      技术参数 :
                                    2¼“-14 UNS
       Spindle Inner Thread:
       螺杆底座:                       2¼"-14 UNS
                                    90-130mm
       PCD:
       孔圆直径:                       90 - 130 mm
                                    160mm
       Outer-Ø:
       外径:                         160 mm
       Fixing Hole Pattern:
                                    2, 3, 4, 5, 6-hole pitch
       固定:                         2 孔、3 孔、4 孔、5 孔、6 孔
       KL-0174-360                      (Code 2404176)                                 KL-0174-360
                                          ( 编码 2404176)
      3 号支撑盘 (3 孔、4 孔、5 孔 )
       Puller Plate, Size 3 (3-, 4- and 5-hole)
       Component for the assembly of a Puller from the Puller-Series KL-0174-...
      用于组装 KL-0174 -... 拉拔器系列的拉拔器的单个零件。
       The puller plate (size 3) can be assembled to an allpurpose puller-system by using
      当使用不同的适配器、螺杆、牵引螺栓、螺钉和驱动器时,3 号支撑盘可以组装
       different adaptors, spindles, puller bolts, screws and drives.
      成通用的拉拔器系统。
       Technical Data:
      技术参数 :
       Spindle Inner Thread:
                                    2¼“-14 UNS
       螺杆底座:                       2¼"-14 UNS
                                    100-180mm
       PCD:
       孔圆直径:                       100 - 180 mm
                                    220mm
       Outer-Ø:
       外径:                         220 mm
       Fixing Hole Pattern:
                                    2, 3, 4, 5, 6-hole pitch
       固定:                         2 孔、3 孔、4 孔、5 孔、6 孔
