技术安全

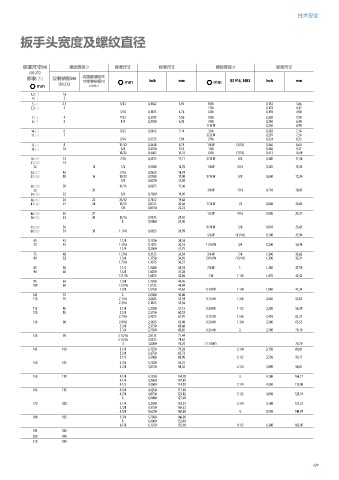

扳手头宽度及螺纹直径

标准尺寸DIN 螺纹直径 Ø 标准尺寸 标准尺寸 螺纹直径 Ø 标准尺寸
ISO 272
标准(大) 公制依照DIN 高强度螺栓尺 Inch mm BS 916, 1083 Inch mm
寸标准依照EN
ISO 272 14399-4
3,2 (–) 1,6
4 (–) 2
5 (–) 2,5 5/32 0,1562 3,97 8 BA 0,152 3,86
5,5 (–) 3 7 BA 0,172 4,37
3/16 0,1875 4,76 6 BA 0,193 4,90
7 (–) 4 7/32 0,2187 5,56 5 BA 0,220 5,59
8 (–) 5 1/4 0,2500 6,35 4 BA 0,248 6,30
1/16 W 0,256 6,90
10 (–) 6 9/32 0,2812 7,14 3 BA 0,282 7,16
11 (–) 7 3/32 W 0,297 7,54
5/16 0,3125 7,94 2 BA 0,324 8,23
13 (–) 8 11/32 0,3438 8,73 1/8 W (3/16) 0,340 8,64
16 (–) 10 3/8 0,3750 9,52 1 BA 0,365 9,27
13/32 0,4062 10,32 0 BA (7/32) 0,413 10,49
18 (21) 12 7/16 0,4375 11,11 3/16 W 1/4 0,445 11,30
21 (24) 14
22 12 1/2 0,5000 12,70 1/4 W 5/16 0,525 13,34
24 (27) 16 9/16 0,5625 14,29
27 (30) 18 16 19/32 0,5938 15,08 5/16 W 3/8 0,600 15,24
5/8 0,6250 15,88
30 (34) 20 11/16 0,6875 17,46
32 20 3/8 W 7/16 0,710 18,03
34 (36) 22 3/4 0,7500 19,05
36 (41) 24 22 25/32 0,7812 19,84
41 (46) 27 24 13/16 0,8125 20,64 7/16 W 1/2 0,820 20,83
7/8 0,8750 22,22
46 (50) 30 27 1/2 W 9/16 0,920 23,37
50 (55) 33 30 15/16 0,9375 23,81
1. 1,0000 25,40
55 (60) 36 9/16 W 5/8 1,010 25,65
60 (65) 39 36 1.1/16 1,0625 26,99
5/8 W (11/16) 1,100 27,94
65 42 1.1/8 1,1250 28,58
70 45 1.3/16 1,1875 30,16 11/16 W 3/4 1,200 30,48
1.1/4 1,2500 31,75
75 48 1.5/16 1,3125 33,34 3/4 W 7/8 1,300 33,02
80 52 1.3/8 1,3750 34,92 13/16 W (15/16) 1,390 35,31
1.7/16 1,4375 36,51
85 56 1.1/2 1,5000 38,10 7/8 W 1. 1,480 37,59
90 60 1.5/8 1,6250 41,28
1.11/16 1,6875 42,86 1.W 1.1/8 1,670 42,42
95 64 1.3/4 1,7500 44,45
100 68 1.13/16 1,8125 46,04
1.7/8 1,8750 47,62 1.1/8 W 1.1/4 1,860 47,24
105 72 2. 2,0000 50,80
110 76 2.1/16 2,0625 52,39 1.1/4 W 1.3/8 2,050 52,07
2.3/16 2,1875 55,56
115 80 2.1/4 2,2500 57,15 1.3/8 W 1.1/2 2,220 56,39
120 85 2.3/8 2,3750 60,32
2.7/16 2,4375 61,91 1.1/2 W 1.5/8 2,410 61,21
130 90 2.9/16 2,5625 65,09 1.5/8 W 1.3/4 2,580 65,53
2.5/8 2,3750 66,68
2.3/4 2,7500 69,85 1.3/4 W 2. 2,760 70,10
135 95 2.13/16 2,8125 71,44
2.15/16 2,9375 74,61
3 3,0000 76,20 (1.7/8W) 76,70
145 100 3.1/8 3,1250 79,38 2.1/4 3,150 80,01
3.3/8 3,3750 85,72
3.1/2 3,5000 88,90 2.1/2 3,550 90,17
150 105 3.3/4 3,7500 95,25
3.7/8 3,8750 98,42 2.3/4 3,890 98,81
155 110 4.1/8 4,1250 104,78 3. 4,180 106,17
4.1/4 4,2500 107,95
4.1/2 4,5000 114,30 3.1/4 4,530 115,06
165 115 4.5/8 4,6250 117,48
4.7/8 4,8750 123,82 3.1/2 4,850 123,19
5. 5,0000 127,00
170 120 5.1/4 5,2500 133,35 3.3/4 5,180 131,57
5.3/8 5,3750 136,52
5.5/8 5,6250 142,88 4. 5,550 140,97
180 125 5.3/4 5,7500 146,05
6. 6,0000 152,40
6.1/8 6,1250 155,58 4.1/2 6,380 162,05
185 130
200 140
210 150

429
