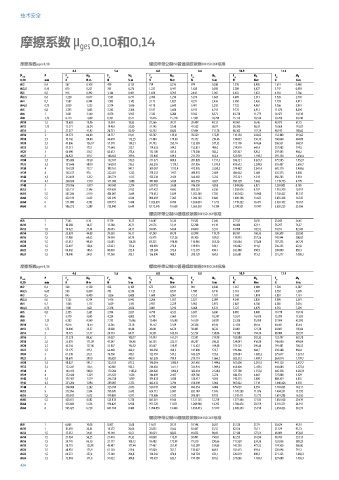

Page 436 - 吉多瑞2023版通用工具

技术安全

摩擦系数 µ ges 0,10和0,14

摩擦系数µges 0,10 螺纹杆带公制ISO普通螺纹依照DIN ISO 261标准
4.6 5.6 6.8 8.8 10.9 12.9
µ P F
celk sp M A F sp M A F sp M A F sp M A F sp M A F sp M A
0,10 mm N N·m N N·m N N·m N N·m N N·m N N·m
M 2 0,4 367 0,108 459 0,135 734 0,216 979 0,288 1.376 0,405 1.651 0,486
M 2,5 0,45 610 0,221 763 0,276 1.221 0,441 1.628 0,588 2.289 0,827 2.747 0,993
M 3 0,5 915 0,392 1.144 0,491 1.830 0,785 2.441 1,047 3.432 1,472 4.118 1,766
M 3,5 0,6 1.228 0,617 1.535 0,771 2.456 1,234 3.274 1,645 4.605 2,313 5.526 2,776
M 4 0,7 1.587 0,914 1.983 1,142 3.173 1,827 4.231 2,436 5.950 3,426 7.139 4,111
M 4,5 0,75 2.059 1,325 2.574 1,656 4.118 2,649 5.491 3,532 7.722 4,967 9.266 5,961
M 5 0,8 2.593 1,843 3.242 2,304 5.187 3,686 6.915 4,915 9.725 6,912 11.670 8,294
M 6 1 3.661 3,140 4.576 3,925 7.322 6,280 9.762 8,373 13.728 11,775 16.473 14,130
M 8 1,25 6.713 7,609 8.391 9,511 13.426 15,218 17.901 20,291 25.173 28,534 30.208 34,240
M 10 1,5 10.683 15,06 13.354 18,82 21.366 30,11 28.488 40,15 40.061 56,46 48.073 67,75
M 12 1,75 15.571 26,24 19.463 32,80 31.142 52,48 41.522 69,97 58.390 98,39 70.068 118,07
M 14 2 21.377 41,92 26.721 52,40 42.753 83,83 57.004 111,78 80.162 157,19 96.195 188,62
M 16 2 29.373 64,80 36.717 81,01 58.747 129,61 78.329 172,81 110.150 243,02 132.180 291,62
M 18 2,5 35.742 89,80 44.678 112,25 71.484 179,60 95.312 239,46 134.033 336,75 160.840 404,09
M 20 2,5 45.896 126,57 57.370 158,21 91.792 253,14 122.389 337,52 172.109 474,64 206.531 569,57
M 22 2,5 57.312 172,1 71.640 215,1 114.623 344,2 152.831 459,0 214.919 645,4 257.902 774,5
M 24 3 66.090 218,7 82.612 273,4 132.180 437,4 176.240 583,2 247.837 820,2 297.405 984,2
M 27 3 86.922 319,7 108.653 399,6 173.845 639,3 231.793 852,4 325.959 1.198,7 391.150 1.438,4
M 30 3,5 105.686 434,0 132.107 542,5 211.371 868,0 281.828 1.157,3 396.321 1.627,4 475.585 1.952,9
M 33 3,5 131.646 589,0 164.557 736,3 263.292 1.178,1 351.056 1.570,8 493.672 2.208,9 592.407 2.650,7
M 36 4 154.529 757,7 193.161 947,1 309.057 1.515,4 412.076 2.020,5 579.482 2.841,4 695.379 3.409,6
M 39 4 185.617 978 232.021 1.223 371.233 1.957 494.978 2.609 696.062 3.669 835.275 4.403
M 42 4,5 212.619 1.212 265.774 1.515 425.238 2.424 566.983 3.232 797.321 4.545 956.785 5.454
M 45 4,5 248.834 1.510 311.043 1.888 497.669 3.020 663.559 4.027 933.129 5.663 1.119.755 6.795
M 48 5 279.956 1.819 349.945 2.274 559.912 3.638 746.550 4.850 1.049.836 6.821 1.259.803 8.185
M 52 5 335.711 2.346 419.639 2.932 671.422 4.692 895.229 6.256 1.258.916 8.797 1.510.700 10.557
M 56 5,5 387.206 2.919 484.007 3.649 774.412 5.839 1.032.549 7.785 1.452.022 10.948 1.742.427 13.137
M 60 5,5 452.319 3.632 565.399 4.540 904.639 7.265 1.206.185 9.686 1.696.198 13.621 2.035.438 16.345
M 64 6 511.800 4.392 639.751 5.490 1.023.601 8.784 1.364.801 11.713 1.919.252 16.471 2.303.102 19.765
M 68 6 586.272 5.319 732.840 6.649 1.172.545 10.638 1.563.393 14.184 2.198.521 19.947 2.638.225 23.936
螺纹杆带公制ISO细螺纹依照DIN ISO 261标准
M 8 1 7.343 8,10 9.179 10,13 14.687 16,20 19.582 21,60 27.537 30,38 33.045 36,45
M 10 1 12.288 16,57 15.360 20,71 24.576 33,14 32.768 44,19 46.080 62,14 55.297 74,57
M 12 1,5 16.522 27,34 20.653 34,17 33.045 54,68 44.060 72,91 61.959 102,52 74.351 123,03
M 14 1,5 23.624 44,89 29.530 56,11 47.249 89,78 62.998 119,70 88.591 168,33 106.309 202,00
M 16 1,5 31.988 68,63 39.984 85,79 63.975 137,26 85.300 183,01 119.953 257,36 143.944 308,83
M 18 1,5 41.612 99,49 52.015 124,36 83.223 198,98 110.965 265,30 156.044 373,08 187.253 447,70
M 20 1,5 52.497 138,4 65.621 173,0 104.993 276,8 139.991 369,1 196.862 519,0 236.235 622,8
M 22 1,5 64.642 186,3 80.803 232,8 129.284 372,6 172.379 496,7 242.408 698,5 290.890 838,3
M 24 1,5 78.048 244,1 97.560 305,1 156.096 488,1 208.129 650,8 292.681 915,2 351.217 1.098,3
摩擦系数µges 0,14 螺纹杆带公制ISO普通螺纹依照DIN ISO 261标准
4.6 5.6 6.8 8.8 10.9 12.9
µ P F
celk sp M A F sp M A F sp M A F sp M A F sp M A F sp M A
0,10 mm N N·m N N·m N N·m N N·m N N·m N N·m
M 2 0,4 338 0,130 422 0,163 675 0,261 901 0,348 1.267 0,489 1.520 0,587
M 2,5 0,45 563 0,269 703 0,336 1.125 0,537 1.500 0,716 2.110 1,007 2.532 1,209
M 3 0,5 845 0,480 1.056 0,600 1.689 0,961 2.253 1,281 3.168 1,801 3.801 2,161
M 3,5 0,6 1.133 0,754 1.416 0,942 2.266 1,507 3.021 2,009 4.248 2,826 5.098 3,391
M 4 0,7 1.463 1,115 1.829 1,393 2.927 2,229 3.902 2,972 5.487 4,180 6.585 5,016
M 4,5 0,75 1.901 1,621 2.376 2,026 3.801 3,242 5.068 4,323 7.127 6,079 8.553 7,295
M 5 0,8 2.395 2,261 2.994 2,827 4.790 4,523 6.387 6,030 8.982 8,480 10.778 10,176
M 6 1 3.379 3,843 4.224 4,803 6.758 7,685 9.011 10,247 12.671 14,410 15.205 17,292
M 8 1,25 6.202 9,349 7.753 11,686 12.404 18,698 16.539 24,931 23.258 35,059 27.909 42,070
M 10 1,5 9.876 18,54 12.345 23,18 19.752 37,09 26.336 49,45 37.034 69,54 44.441 83,44
M 12 1,75 14.400 32,37 18.000 40,46 28.801 64,74 38.401 86,32 54.001 121,38 64.801 145,66
M 14 2 19.775 51,77 24.719 64,71 39.551 103,54 52.734 138,06 74.158 194,14 88.989 232,97
M 16 2 27.221 80,62 34.027 100,77 54.443 161,24 72.591 214,98 102.080 302,32 122.497 362,78
M 18 2,5 33.078 111,09 41.347 138,86 66.155 222,17 88.207 296,23 124.041 416,58 148.850 499,89
M 20 2,5 42.534 157,46 53.167 196,82 85.067 314,91 113.423 419,88 159.501 590,46 191.401 708,55
M 22 2,5 53.175 215,1 66.469 268,9 106.350 430,2 141.800 573,7 199.406 806,7 239.288 968,0
M 24 3 61.248 272,1 76.560 340,1 122.497 544,2 163.329 725,6 229.681 1.020,3 275.617 1.224,4
M 27 3 80.670 399,9 100.837 499,9 161.339 799,9 215.119 1.066,5 302.512 1.499,7 363.014 1.799,7
M 30 3,5 98.027 541,7 122.533 677,2 196.054 1.083,4 261.405 1.444,6 367.600 2.031,5 441.120 2.437,7
M 33 3,5 122.241 738,5 152.801 923,2 244.482 1.477,1 325.976 1.969,4 458.404 2.769,5 550.084 3.323,4
M 36 4 143.413 948,0 179.266 1.185,0 286.826 1.896,0 382.434 2.528,0 537.798 3.555,0 645.358 4.265,9
M 39 4 172.420 1.229 215.525 1.536 344.839 2.457 459.786 3.276 646.574 4.607 775.888 5.529
M 42 4,5 197.407 1.519 246.758 1.899 394.813 3.038 526.417 4.050 740.275 5.696 888.329 6.835
M 45 4,5 231.206 1.898 289.007 2.373 462.412 3.796 616.549 5.062 867.022 7.118 1.040.426 8.541
M 48 5 260.008 2.282 325.010 2.853 520.015 4.565 693.354 6.086 975.029 8.559 1.170.035 10.211
M 52 5 312.056 2.954 390.070 3.692 624.112 5.907 832.149 7.876 1.170.209 11.076 1.404.251 13.292
M 56 5,5 359.843 3.672 449.804 4.591 719.686 7.345 959.581 9.793 1.349.411 13.772 1.619.293 16.526
M 60 5,5 420.651 4.582 525.813 5.728 841.301 9.164 1.121.735 12.219 1.577.440 17.183 1.892.928 20.619
M 64 6 475.860 5.536 594.825 6.920 951.720 11.071 1.268.960 14.762 1.784.476 20.759 2.141.371 24.911
M 68 6 545.427 6.720 681.784 8.400 1.090.855 13.440 1.454.473 17.919 2.045.353 25.199 2.454.423 30.239
螺纹杆带公制ISO细螺纹依照DIN ISO 261标准
M 8 1 6.805 10,08 8.507 12,60 13.611 20,15 18.148 26,87 25.520 37,79 30.624 45,35
M 10 1 11.418 20,83 14.272 26,04 22.835 41,66 30.447 55,55 42.816 78,11 51.379 93,73
M 12 1,5 15.312 34,01 19.140 42,51 30.624 68,02 40.832 90,69 57.420 127,54 68.904 153,05
M 14 1,5 21.934 56,25 27.418 70,32 43.868 112,51 58.491 150,01 82.253 210,96 98.703 253,15
M 16 1,5 29.741 86,50 37.177 108,12 59.483 172,99 79.310 230,66 111.530 324,36 133.836 389,23
M 18 1,5 38.733 125,95 48.417 157,44 77.467 251,91 103.289 335,88 145.250 472,33 174.300 566,80
M 20 1,5 48.910 175,9 61.138 219,8 97.820 351,7 130.427 468,9 183.413 659,4 220.096 791,3
M 22 1,5 60.272 237,4 75.340 296,8 120.543 474,8 160.724 633,1 226.019 890,3 271.223 1.068,3
M 24 1,5 72.818 311,8 91.022 389,8 145.635 623,7 194.180 831,6 273.066 1.169,4 327.680 1.403,3
434
