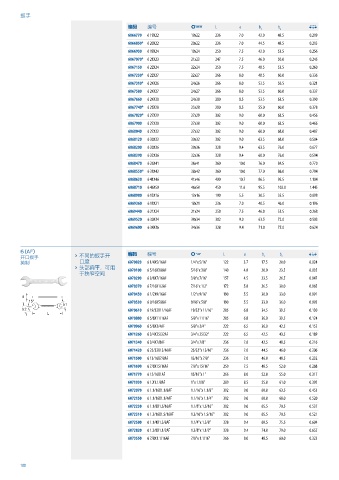

Page 100 - 吉多瑞2023版通用工具

扳手
编码 编号 ! L a b 1 b 2 0
6066770 6 19X22 19x22 236 7.0 43.0 48.5 0.219
6066850* 6 20X22 20x22 236 7.0 44.5 48.5 0.213
6066930 6 19X24 19x24 250 7.5 43.0 53.5 0.256
6067070* 6 21X23 21x23 247 7.5 46.0 50.0 0.245
6067150 6 22X24 22x24 250 7.5 48.5 53.5 0.260
6067230* 6 22X27 22x27 266 8.0 48.5 60.0 0.336
6067310* 6 24X26 24x26 266 8.0 53.5 56.5 0.321
6067580 6 24X27 24x27 266 8.0 53.5 60.0 0.337
6067660 6 24X30 24x30 280 8.5 53.5 63.5 0.390
6067740* 6 25X28 25x28 280 8.5 55.0 60.0 0.378
6067820* 6 27X29 27x29 302 9.0 60.0 63.5 0.456
6067900 6 27X30 27x30 302 9.0 60.0 63.5 0.466
6068040 6 27X32 27x32 302 9.0 60.0 68.0 0.487
6068120 6 30X32 30x32 302 9.0 63.5 68.0 0.504
6068200 6 30X36 30x36 328 9.4 63.5 76.0 0.677
6068390 6 32X36 32x36 328 9.4 68.0 76.0 0.594
6068470 6 36X41 36x41 360 10.0 76.0 84.5 0.770
6068550* 6 38X42 38x42 360 10.0 77.0 86.0 0.784
6068630 6 41X46 41x46 400 10.7 86.5 95.5 1.104
6068710 6 46X50 46x50 450 11.6 95.5 102.0 1.445
6068980 6 13X16 13x16 190 5.5 30.5 35.5 0.098
6069360 6 18X21 18x21 236 7.0 40.5 46.0 0.196
6069440 6 21X24 21x24 250 7.5 46.0 53.5 0.268
6069520 6 30X34 30x34 302 9.0 63.5 72.0 0.503
6069600 6 34X36 34x36 328 9.4 71.0 75.0 0.624

扳手 编码 编号
6 (AF)
开口扳手 › 不同的扳手开 " L a b 1 b 2 0
英制 口度 6070020 6 1/4X5/16AF 1/4"x 5/16" 122 3.7 17.5 20.0 0.024
› 头部扁平，可用 6070100 6 5/16X3/8AF 5/16"x 3/8" 140 4.0 20.0 23.5 0.035
于狭窄空间
6070290 6 3/8X7/16AF 3/8"x 7/16" 157 4.5 23.5 26.5 0.047
6070370 6 7/16X1/2AF 7/16"x 1/2" 172 5.0 26.5 30.0 0.065
6070450 6 1/2X9/16AF 1/2"x 9/16" 190 5.5 30.0 33.0 0.091
6070530 6 9/16X5/8AF 9/16"x 5/8" 190 5.5 33.0 36.0 0.092
6070610 6 19/32X11/16AF 19/32"x 11/16" 205 6.0 34.5 39.5 0.130
6070880 6 5/8X11/16AF 5/8"x 11/16" 205 6.0 36.0 39.5 0.124
6070960 6 5/8X3/4AF 5/8"x 3/4" 222 6.5 36.0 42.5 0.152
6071260 6 3/4X25/32AF 3/4"x 25/32" 222 6.5 42.5 43.5 0.189
6071340 6 3/4X7/8AF 3/4"x 7/8" 236 7.0 42.5 48.5 0.216
6071420 6 25/32X13/16AF 25/32"x 13/16" 236 7.0 44.5 46.0 0.206
6071500 6 13/16X7/8AF 13/16"x 7/8" 236 7.0 46.0 48.5 0.232
6071690 6 7/8X15/16AF 7/8"x 15/16" 250 7.5 48.5 52.0 0.268
6071770 6 15/16X1AF 15/16"x 1" 266 8.0 52.0 55.0 0.317
6071930 6 1.X1.1/8AF 1"x 1.1/8" 280 8.5 55.0 61.0 0.395
6072070 6 1.1/16X1.1/8AF 1.1/16"x 1.1/8" 302 9.0 60.0 63.5 0.453
6072150 6 1.1/16X1.1/4AF 1.1/16"x 1.1/4" 302 9.0 60.0 68.0 0.520
6072230 6 1.1/8X1.5/16AF 1.1/8"x 1.5/16" 302 9.0 65.5 70.5 0.537
6072310 6 1.3/16X1.5/16AF 1.3/16"x 1.5/16" 302 9.0 65.5 70.5 0.521
6072580 6 1.1/4X1.3/8AF 1.1/4"x 1.3/8" 328 9.4 69.5 75.5 0.604
6072820 6 1.3/8X1.1/2AF 1.3/8"x 1.1/2" 328 9.4 74.0 79.0 0.655
6073550 6 7/8X1.1/16AF 7/8"x 1.1/16" 266 8.0 48.5 60.0 0.323

100
