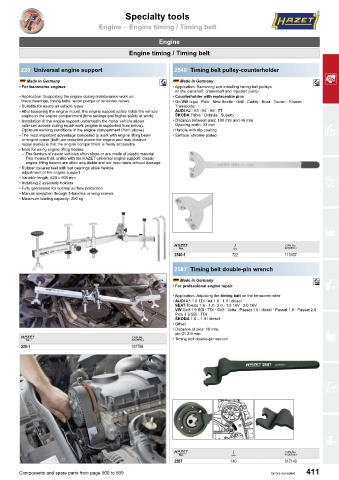

Page 413 - HAZET哈蔡特2024英文样本

Specialty tools

Engine – Engine timing / Timing belt

Engine

Engine timing / Timing belt

220 Universal engine support 2540 Timing belt pulley-counterholder
G
Made in Germany ß Made in Germany ß
• For transverse engines • Application: Removing and installing timing belt pulleys
on the camshaft, crankshaft and injection pump
• Application: Supporting the engine during maintenance work on • Counterholder with replaceable pins
thrust bearings, timing belts, water pumps or tensioner rollers • On VW Lupo ∙ Polo ∙ New Beetle ∙ Golf ∙ Caddy ∙ Bora ∙ Touran ∙ Sharan ∙
• Suitable for nearly all vehicle types Transporter
• After loosening the engine mount, the engine support safely holds the vehicle AUDI A2 ∙ A3 ∙ A4 ∙ A6 ∙ TT
engine in the engine compartment (time savings and higher safety at work) ŠKODA Fabia ∙ Octavia ∙ Superb
• Installation of the engine support underneath the motor vehicle allows • Distance between pins: 100 mm and 46 mm
optimum access during repair work (engine is supported from below). Opening width: 33 mm
Optimum working conditions in the engine compartment (from above) • Handle with dip-coating F
• The most important advantage compared to work with engine lifting beam • Surface: chrome-plated
or engine crane (both are mounted above the engine and may obstruct
repair works) is that the engine compartment is freely accessible
• Note for using engine lifting beams:
– The fenders of newer vehicles often slope or are made of plastic material.
This means that, unlike with the HAZET universal engine support, classic
engine lifting beams are often unsuitable and not mountable without damage
• Rubber covered feet with ball bearings allow flexible
adjustment of the engine support
• Variable length: 620 – 900 mm
• Including 2 assembly holders D
• Fully galvanised for optimal surface protection
• Manual operation through T-handles or wing screws
• Maximum loading capacity: 250 kg

R

1 K 4
2540-1 722 110407

2587 Timing belt double-pin wrench

Made in Germany ß
• For professional engine repair C
• Application: Adjusting the timing belt on the tensioner roller
• AUDI A3 1.9 TDi ∙ A4 1.6 ∙ 1.6 l diesel
SEAT Toledo 1.6 ∙ 1.8 ∙ 2.0 ∙ 1.8 16V ∙ 2.0 16V
VW Golf 1.9 SDi ∙ TDi ∙ Golf ∙ Jetta ∙ Passat 1.6 l diesel ∙ Passat 1.6 ∙ Passat 2.0 ∙
Polo 1.9 SDi ∙ TDi
ŠKODA 1.6 – 1.9 l diesel
• Offset
• Distance of pins: 18 mm,
pin x: 2.9 mm
1 4 • Timing belt double-pin wrench O
220-1 191758

A

U

1 K 4
2587 140 017140
