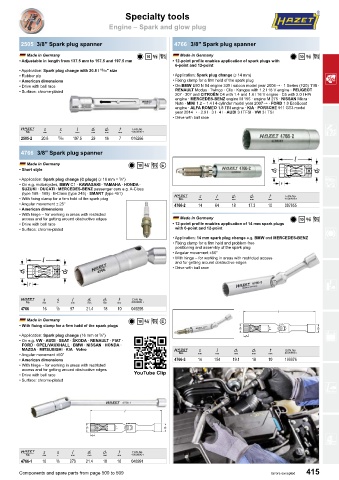

Page 417 - HAZET哈蔡特2024英文样本

Specialty tools

Engine – Spark and glow plug

2505 3/8″ Spark plug spanner 4766 3/8″ Spark plug spanner

Made in Germany c7 I Made in Germany r7 I
• Adjustable in length from 137.5 mm to 157.5 and 197.5 mm • 12-point profile enables application of spark plugs with
6-point and 12-point
• Application: Spark plug change with 20.8 / ⁄16″ size
13
• Rubber ply • Application: Spark plug change (Ä 14 mm)
• American dimensions • Fixing clamp for a firm hold of the spark plug G
• Drive with ball race • On BMW E90 N 54 engine 335 i saloon model year 2006 → ∙ 1 Series (F20) 118i ∙
• Surface: chrome-plated RENAULT Modus ∙ Twingo ∙ Clio ∙ Kangoo with 1.2 l 16 V engine ∙ PEUGEOT
207 ∙ 307 and CITROËN C4 with 1.4 and 1.6 l 16 V engine ∙ C5 with 2.0 l HPi
engine ∙ MERCEDES-BENZ engine M 156 ∙ engine M 276 ∙ NISSAN Micra ∙
Note ∙ MINI 1.2 – 1.4 l 4-cylinder model year 2007 → ∙ FORD 1.0 EcoBoost
engine ∙ ALFA ROMEO 1.8 TBI engine ∙ KIA ∙ PORSCHE 911 GT3 model
year 2014 → ∙ 2.9 l ∙ 3 l ∙ 4 l ∙ AUDI 3 l TFSI ∙ VW 3 l TSI
• Drive with ball race

1 S T K G H c 4 F
2505-2 20.8 13 ⁄16 197.5 29 16 7 016266

4766 3/8″ Spark plug spanner
Made in Germany c7 I/
• Short style
5
• Application: Spark plug change (C plugs) (Ä 16 mm = ⁄8″) D
• On e.g. motorcycles, BMW C1 ∙ KAWASAKI ∙ YAMAHA ∙ HONDA ∙
SUZUKI ∙ DUCATI ∙ MERCEDES-BENZ passenger cars e.g. A-Class
(type 168 ∙ 169) ∙ B-Class (type 245) ∙ SMART (type 451) 1 4
• With fixing clamp for a firm hold of the spark plug S K G H c
• Angular movement ± 25° 4766-2 14 64 18 17.3 10 087655
• American dimensions
• With hinge – for working in areas with restricted
access and for getting around obstructive edges Made in Germany r7 I
• Drive with ball race • 12-point profile enables application of 14 mm spark plugs
• Surface: chrome-plated with 6-point and 12-point R
• Application: 14 mm spark plug change e.g. BMW and MERCEDES-BENZ
• Fixing clamp for a firm hold and problem-free
positioning and assembly of the spark plug
• Angular movement ±56°
• With hinge – for working in areas with restricted access
and for getting around obstructive edges
• Drive with ball race

C

1 S T K G H c 4
4766 16 5 ⁄8 97 21.4 18 10 049295

Made in Germany c7 I/
• With fixing clamp for a firm hold of the spark plugs
5
• Application: Spark plug change (16 mm or ⁄8″) O
• On e.g. VW ∙ AUDI ∙ SEAT ∙ ŠKODA ∙ RENAULT ∙ FIAT ∙
FORD ∙ OPEL/VAUXHALL ∙ BMW ∙ NISSAN ∙ HONDA ∙
MAZDA ∙ MITSUBISHI ∙ KIA ∙ Volvo 1 S K G H c 4
• Angular movement ±50°
• American dimensions 4766-3 14 154 19.1 18 10 199976
• With hinge – for working in areas with restricted
access and for getting around obstructive edges YouTube Clip
• Drive with ball race
• Surface: chrome-plated
A

U

1 S T K G H c 4
4766-1 16 5 ⁄8 270 21.4 18 10 048991

Components and spare parts from page 500 to 509 Errors excepted 415
