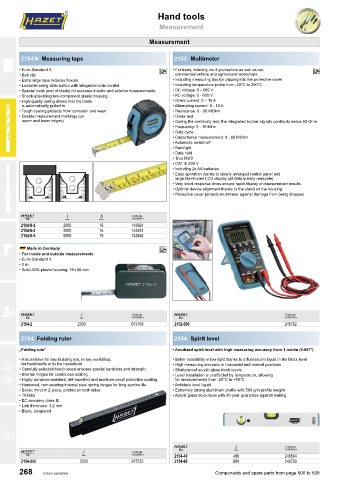

Page 270 - HAZET哈蔡特2024英文样本

Hand tools Hand tools

Measurement Measurement

Measurement

2154 N Measuring tape 2152 Multimeter

• Euro-Standard II K • For trade, industry, do-it-yourselfers as well as car, K
• Belt clip commercial vehicle and agricultural workshops
• Extra large tape reduces flexure • Including measuring tips for clipping into the protective cover
• Lockable using slide button with integrated slide control • Including temperature probe from -20°C to 200°C
• Special hook (end of blade) for accurate interior and exterior measurements • DC voltage: 0 - 600 V
• Shock-absorbing two-component plastic housing • AC voltage: 0 - 600 V
• High-quality spring allows that the blade • Direct current: 0 – 10 A
is automatically pulled in • Alternating current: 0 - 10 A
• Tough coating protects from corrosion and wear • Resistance: 0 - 60 MOhm
• Double measurement markings (on • Diode test
upper and lower edges) • During the continuity test, the integrated buzzer signals continuity below 50 Ohm
• Frequency: 0 - 10 MHz
• Duty cycle
• Capacitance measurement: 0 - 60 MOhm
• Automatic switch-off
• Backlight
• Data hold
• True RMS
• CAT III 600 V
• Including 2x AA batteries
• Easy operation thanks to clearly arranged control panel and
large illuminated LCD display (all data quickly readable)
• Very short response times ensure rapid display of measurement results
• Optimal device alignment thanks to the stand on the housing
• Protective cover protects multimeter against damage from being dropped

1 K 5 4
2154 N-2 2000 16 143924
2154 N-3 3000 16 143931
2154 N-5 5000 19 143948

Made in Germany K
• For inside and outside measurements
• Euro-Standard II
• 2 m
• Solid ABS-plastic housing, 76 x 56 mm

1 K 4 1 4
2154-2 2000 013159 2152-600 246762

2154 Folding ruler 2154 Spirit level

„Folding rule“ • Anodized spirit level with high measuring accuracy from 1 mm/m (0.057°)
• A must-have for any building site, in any workshop, • Better readability in low light thanks to a fluorescent liquid in the block level
for handicrafts or in the household • High measuring accuracy in horizontal and vertical positions
• Carefully selected beech wood ensures special hardness and strength • Shatterproof acrylic glass block levels
• Internal hinges for continuous scaling • Level installation is unaffected by temperature, allowing
• Highly abrasion-resistant, dirt-repellent and moisture-proof protective coating for measurements from -20°C to +50°C
• Hardened, non-wearing internal steel spring hinges for long service life • Antistatic level liquid
• Scale: mm/cm 2-piece, printed on both sides • Extremely strong aluminium profile with 590 g/m profile weight
• 10 links • Acrylic glass block level with 30-year guarantee against leaking
• EC accuracy class III
• Link thickness: 3.2 mm
• Black, lacquered

1 K 4
1 K 4 2154-40 400 246694
2154-200 2000 247332 2154-80 800 246700
268 Errors excepted Components and spare parts from page 500 to 509
