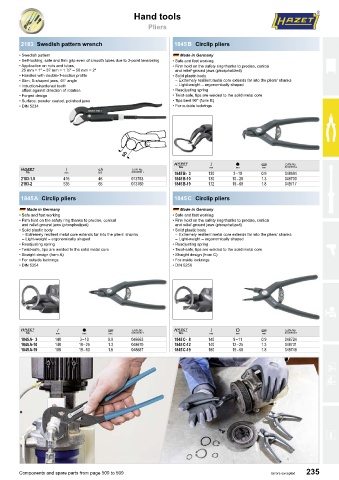

Page 237 - HAZET哈蔡特2024英文样本

Hand tools

Pliers

2183 Swedish pattern wrench 1845 B Circlip pliers

• Swedish pattern Made in Germany
• Self-locking, safe and firm grip even of smooth tubes due to 3-point tensioning • Safe and fast working
• Application on nuts and tubes, • Firm hold on the safety ring thanks to precise, conical
25 mm = 1″ – 37 mm = 1. ⁄2″ – 50 mm = 2″ and relief-ground jaws (phosphatized)
1
• Handles with double-T-section profile • Solid plastic body
• Slim, S-shaped jaws, 45° angle – Extremely resilient metal core extends far into the pliers‘ shanks
• Induction-hardened teeth – Light-weight – ergonomically shaped
offset against direction of rotation • Readjusting spring
• Forged design • Twist-safe, tips are welded to the solid metal core
• Surface: powder coated, polished jaws • Tips bent 90° (form B)
• DIN 5234 • For outside lockrings

1 K K = 4
1 K U 4 1845 B- 3 130 3 – 10 0.9 048694
2183-1.5 416 46 013753 1845 B-10 130 10 – 25 1.3 048700
2183-2 535 65 013760 1845 B-19 172 19 – 60 1.8 048717

1845 A Circlip pliers 1845 C Circlip pliers
Made in Germany Made in Germany
• Safe and fast working • Safe and fast working
• Firm hold on the safety ring thanks to precise, conical • Firm hold on the safety ring thanks to precise, conical
and relief-ground jaws (phosphatized) and relief-ground jaws (phosphatized)
• Solid plastic body • Solid plastic body
– Extremely resilient metal core extends far into the pliers‘ shanks – Extremely resilient metal core extends far into the pliers‘ shanks
– Light-weight – ergonomically shaped – Light-weight – ergonomically shaped
• Readjusting spring • Readjusting spring
• Twist-safe, tips are welded to the solid metal core • Twist-safe, tips are welded to the solid metal core
• Straight design (form A) • Straight design (from C)
• For outside lockrings • For inside lockrings
• DIN 5254 • DIN 5256

1 K K = 4 1 K L = 4
1845 A- 3 140 3 – 10 0.9 048663 1845 C- 8 140 8 – 11 0.9 048724
1845 A-10 140 10 – 25 1.3 048670 1845 C-12 140 12 – 25 1.3 048731
1845 A-19 180 19 – 60 1.8 048687 1845 C-19 180 19 – 60 1.8 048748

Components and spare parts from page 500 to 509 Errors excepted 235
