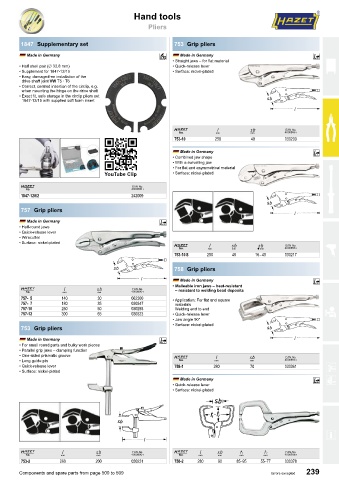

Page 241 - HAZET哈蔡特2024英文样本

Hand tools

Pliers

1847 Supplementary set 753 Grip pliers

Made in Germany F Made in Germany A
• Straight jaws – for flat material
• Half shell pair (x 32.8 mm) • Quick-release lever
• Supplement for 1847-12/15 • Surface: nickel-plated
• Easy, damage-free installation of the
drive shaft joint VW T5 ∙ T6
• Correct, centred insertion of the circlip, e.g.
when mounting the hinge on the drive shaft
• Exact fit, safe storage in the circlip pliers set
1847-12/15 with supplied soft foam insert

1 K U 4
753-10 250 40 030200

Made in Germany A
• Combined jaw shape
• With a swivelling jaw
• For flat and asymmetrical material
YouTube Clip • Surface: nickel-plated

1 4
1847-128/2 242009

757 Grip pliers

Made in Germany A
• Half-round jaws
• Quick-release lever
• Wirecutter
1 K U X 4
• Surface: nickel-plated
753-10 S 250 45 16 – 45 030217

758 Grip pliers

Made in Germany
• Malleable iron jaws – heat-resistant A
1 K U 4 – resistant to welding bead deposits
757- 5 140 30 062300 • Application: For flat and square
757- 7 180 35 030347 materials
757-10 250 50 030293 Welding end to end
757-12 300 65 030323 • Quick-release lever
• Jaw angle 90°
• Surface: nickel-plated
753 Grip pliers
Made in Germany A
• For small round parts and bulky work pieces
• Parallel grip jaws – clamping function
• One-sided prismatic groove 1 4
• Long guide pin K U
• Quick-release lever 758-1 280 70 030361
• Surface: nickel-plated
Made in Germany A
• Quick-release lever
• Surface: nickel-plated

1 K U 4 1 K U d e 4
753-2 260 200 030231 758-2 280 90 85–95 55–77 030378

Components and spare parts from page 500 to 509 Errors excepted 239
