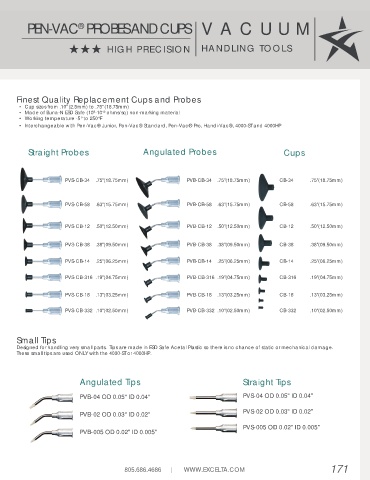

PEN-VAC PROBES AND CUPS VA CUUM
®

HHH HIGH PRECISION HANDLING TOOLS

Finest Quality Replacement Cups and Probes
• Cup sizes from .10”(2.5mm) to .75”(18.75mm)
• Made of Buna-N ESD Safe (10 -10¹² ohms/sq) non-marking material
8
• Working temperature -5° to 250°F
• Interchangeable with Pen-Vac® Junior, Pen-Vac® Standard, Pen-Vac® Pro, Handi-Vac®, 4000-ST and 4000HP

Straight Probes Angulated Probes Cups

PVS-CB-34 .75"(18.75mm) PVB-CB-34 .75"(18.75mm) CB-34 .75"(18.75mm)

PVS-CB-58 .63"(15.75mm) PVB-CB-58 .63"(15.75mm) CB-58 .63"(15.75mm)

PVS-CB-12 .50"(12.50mm) PVB-CB-12 .50"(12.50mm) CB-12 .50"(12.50mm)

PVS-CB-38 .38"(09.50mm) PVB-CB-38 .38"(09.50mm) CB-38 .38"(09.50mm)

PVS-CB-14 .25"(06.25mm) PVB-CB-14 .25"(06.25mm) CB-14 .25"(06.25mm)

PVS-CB-316 .19"(04.75mm) PVB-CB-316 .19"(04.75mm) CB-316 .19"(04.75mm)

PVS-CB-18 .13"(03.25mm) PVB-CB-18 .13"(03.25mm) CB-18 .13"(03.25mm)

PVS-CB-332 .10"(02.50mm) PVB-CB-332 .10"(02.50mm) CB-332 .10"(02.50mm)

Small Tips
Designed for handling very small parts. Tips are made in ESD Safe Acetal Plastic so there is no chance of static or mechanical damage.
These small tips are used ONLY with the 4000-ST or 4000HP.

Angulated Tips Straight Tips

PVB-04 OD 0.05" ID 0.04" PVS-04 OD 0.05" ID 0.04"

PVB-02 OD 0.03" ID 0.02" PVS-02 OD 0.03" ID 0.02"

PVS-005 OD 0.02" ID 0.005"
PVB-005 OD 0.02" ID 0.005"

805.686.4686 | WWW.EXCELTA.COM 171
