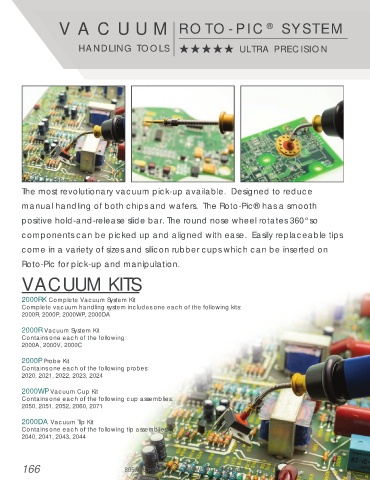

VA CUUM ROTO-PIC SYSTEM
®

HANDLING TOOLS HHHHH ULTRA PRECISION

The most revolutionary vacuum pick-up available. Designed to reduce

manual handling of both chips and wafers. The Roto-Pic® has a smooth

positive hold-and-release slide bar. The round nose wheel rotates 360° so

components can be picked up and aligned with ease. Easily replaceable tips

come in a variety of sizes and silicon rubber cups which can be inserted on

Roto-Pic for pick-up and manipulation.

VACUUM KITS

2000RK Complete Vacuum System Kit
Complete vacuum handling system includes one each of the following kits:
2000R, 2000P, 2000WP, 2000DA

2000R Vacuum System Kit
Contains one each of the following:
2000A, 2000V, 2000C

2000P Probe Kit
Contains one each of the following probes:
2020, 2021, 2022, 2023, 2024

2000WP Vacuum Cup Kit
Contains one each of the following cup assemblies:
2050, 2051, 2052, 2060, 2071

2000DA Vacuum Tip Kit
Contains one each of the following tip assemblies:
2040, 2041, 2043, 2044
