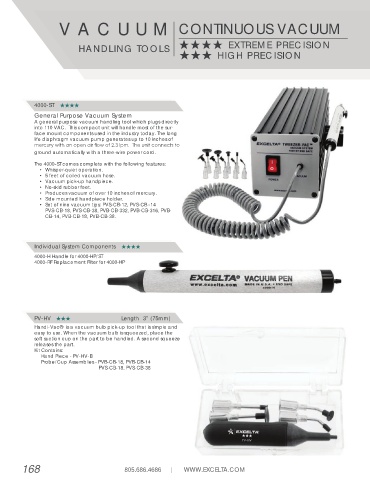

Page 168 - Excelta-2019-Catalog

VA CUUM CONTINUOUS VACUUM

HANDLING TOOLS HHHH EXTREME PRECISION
HHH HIGH PRECISION

4000-ST HHHH
General Purpose Vacuum System
A general purpose vacuum handling tool which plugs directly
into 110 VAC. This compact unit will handle most of the sur-
face mount components used in the industry today. The long
life diaphragm vacuum pump generates up to 10 inches of
mercury with an open air fl ow of 2.3 lpm. The unit connects to
ground automatically with a three-wire power cord.
The 4000-ST comes complete with the following features:
• Whisper-quiet operation.
• 5 feet of coiled vacuum hose.
• Vacuum pick-up handpiece.
• No-skid rubber feet.
• Produces vacuum of over 10 inches of mercury.
• Side mounted handpiece holder.
• Set of nine vacuum tips: PVS-CB-12, PVS-CB -14
PVS-CB-18, PVS-CB-38, PVB-CB-332, PVB-CB-316, PVB-
CB-14, PVB-CB-18, PVB-CB-38.

Individual System Components HHHH
4000-H Handle for 4000-HP/ST
4000-RF Replacement Filter for 4000-HP

PV-HV HHH Length 3” (75mm)
Handi-Vac® is a vacuum bulb pick-up tool that is simple and
easy to use. When the vacuum bulb is squeezed, place the
soft suction cup on the part to be handled. A second squeeze
releases the part.
Kit Contains:
Hand Piece - PV-HV-B
Probe/Cup Assemblies - PVB-CB-18, PVB-CB-14
PVS-CB-18, PVS-CB-38

168 805.686.4686 | WWW.EXCELTA.COM
