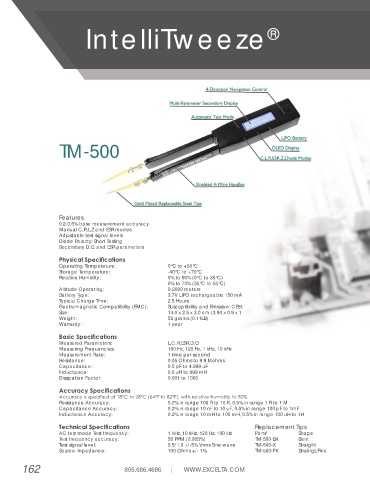

IntelliTweeze ®

TM-500
TM-500

Features
0.2-0.5% base measurement accuracy
Manual C,R,L,Z and ESR modes
Adjustable test signal levels
Diode Polarity/Short Testing
Secondary D,Q and ESR parameters

Physical Specifi cations
Operating Temperature: 0°C to +50°C
Storage Temperature: -40°C to +70°C
Relative Humidity: 0% to 90% (0°C to 35°C)
0% to 70% (35°C to 55°C)
Altitude Operating: 0-2000 meters
Battery Type: 3.7V LIPO rechargeable 150 mAh
Typical Charge Time: 2.5 Hours
Electromagnetic Compatibility (EMC): Susceptibility and Emission: CE89/336, FCC 15 part B
Size: 14.0 x 2.5 x 3.0 cm (3.94 x 0.9 x 1.5 in)
Weight: 53 grams (0.11LB)
Warranty: 1 year
Basic Specifi cations
Measured Parameters: L,C,R,ESR,D,Q
Measuring Frequencies: 100 Hz, 120 Hz, 1 kHz, 10 kHz
Measurement Rate: 1 time per second
Resistance: 0.05 Ohms to 9.9 Mohms
Capacitance: 0.5 pF to 4.999 uF
Inductance: 0.5 uH to 999 mH
Dissipation Factor: 0.001 to 1000

Accuracy Specifi cations
Accuracy is specifi ed at 18°C to 28°C (64°F to 82°F), with relative humidity to 90%
Resistance Accuracy: 0.2% in range 100 R to 10 K, 0.5% in range 1 R to 1 M
Capacitance Accuracy: 0.2% in range 10 nF to 10 uF, 0.5% in range 100 pF to 1mF
Inductance Accuracy: 0.2% in range 10 mH to 100 mH, 0.5% in range 100 uH to 1H
Technical Specifi cations Replacement Tips
AC test mode Test frequency: 1 kHz, 10 kHz, 120 Hz, 100 Hz Part# Shape
Test frequency accuracy: 50 PPM (0.005%) TM-500-BX Bent
Test signal level: 0.5/1.0 +/-5% Vrms Sine wave TM-500-X Straight
Source impedance: 100 Ohms +/- 1% TM-500-PX Straingt,Fine
