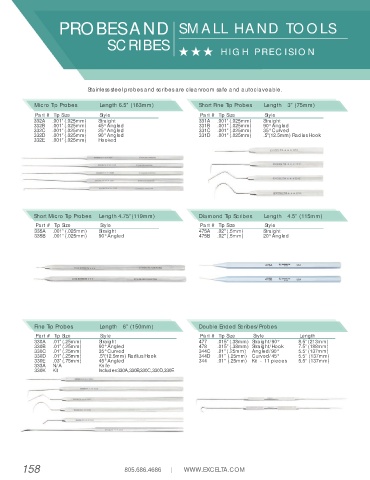

Page 158 - Excelta-2019-Catalog

PROBES AND SMALL HAND TOOLS

SCRIBES HHH HIGH PRECISION

Stainless steel probes and scribes are cleanroom safe and autoclaveable.

Micro Tip Probes Length 6.5” (163mm) Short Fine Tip Probes Length 3” (75mm)
Part # Tip Size Style Part # Tip Size Style
332A .001" (.025mm) Straight 331A .001" (.025mm) Straight
332B .001" (.025mm) 45° Angled 331B .001" (.025mm) 90° Angled
332C .001" (.025mm) 25° Angled 331C .001" (.025mm) 35° Curved
332D .001" (.025mm) 90° Angled 331D .001" (.025mm) .5"(12.5mm) Radius Hook
332E .001" (.025mm) Hooked

Short Micro Tip Probes Length 4.75”(119mm) Diamond Tip Scribes Length 4.5” (115mm)
Part # Tip Size Style Part # Tip Size Style
335A .001" (.025mm) Straight 475A .02" (.5mm) Straight
335B .001" (.025mm) 90° Angled 475B .02" (.5mm) 20° Angled

Fine Tip Probes Length 6” (150mm) Double Ended Scribes/Probes
Part # Tip Size Style Part # Tip Size Style Length
330A .01" (.25mm) Straight 477 .015" (.38mm) Straight/90° 8.5" (213mm)
330B .01" (.25mm) 90° Angled 478 .015" (.38mm) Straight/Hook 7.5" (188mm)
330C .01" (.25mm) 35° Curved 344C .01" (.25mm) Angled/90° 5.5" (137mm)
330D .01" (.25mm) .5"(12.5mm) Radius Hook 344D .01” (.25mm) Curved/45° 5.5” (137mm)
330E .03" (.75mm) 45° Angled 344 .01” (.25mm) Kit - 11 pieces 5.5” (137mm)
333A N/A Knife
330K Kit Includes 330A,330B,330C,330D,330E

158 805.686.4686 | WWW.EXCELTA.COM
