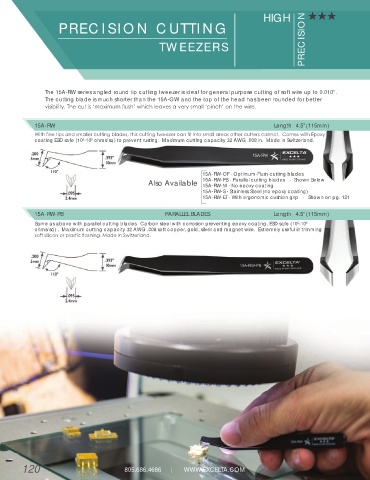

Page 120 - Excelta-2019-Catalog

HIGH HHH
PRECISION CUTTING

TWEEZERS PRECISION

The 15A-RW series angled round tip cutting tweezer is ideal for general purpose cutting of soft wire up to 0.010”.
The cutting blade is much shorter than the 15A-GW and the top of the head has been rounded for better
visibility. The cut is ‘maximum fl ush’ which leaves a very small ‘pinch’ on the wire.

15A-RW Length 4.5”(115mm)
With fi ne tips and smaller cutting blades, this cutting tweezer can fi t into small areas other cutters cannot. Comes with Epoxy
coating ESD safe (10 -10 ohms/sq) to prevent rusting. Maximum cutting capacity 32 AWG .008 in. Made in Switzerland.
6
5

15A-RW-OF - Optimum-Flush cutting blades
Also Available 15A-RW-PB - Parallel cutting blades - Shown Below
15A-RW-M - No epoxy coating
15A-RW-S - Stainless Steel (no epoxy coating)
15A-RW-ET - With ergonomic cushion grip - Shown on pg. 121

15A-RW-PB PARALLEL BLADES Length 4.5”(115mm)
Same as above with parallel cutting blades. Carbon steel with corrosion preventing epoxy coating, ESD safe (10 -10 6
5
ohms/sq) . Maximum cutting capacity 32 AWG .008 soft copper, gold, silver and magnet wire. Extremely useful in trimming
soft silicon or plastic fl ashing. Made in Switzerland.

120 805.686.4686 | WWW.EXCELTA.COM
