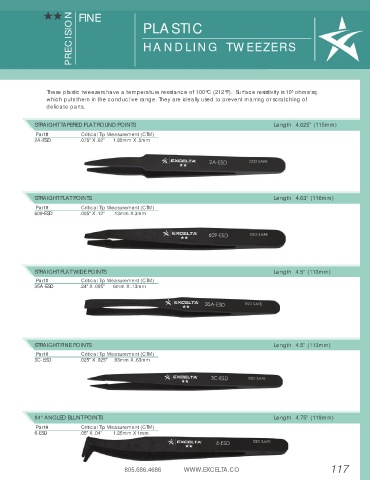

Page 117 - Excelta-2019-Catalog

HH FINE PLASTIC
PRECISION HANDLING TWEEZERS

These plastic tweezers have a temperature resistance of 100°C (212°F). Surface resistivity is 10 ohms/sq.
5
which puts them in the conductive range. They are ideally used to prevent marring or scratching of
delicate parts.

STRAIGHT TAPERED FLAT ROUND POINTS Length 4.625” (115mm)
Part# Critical Tip Measurement (CTM)
2A-ESD .075" X .02" 1.88mm X .5mm

STRAIGHT FLAT POINTS Length 4.63” (116mm)
Part# Critical Tip Measurement (CTM)
609-ESD .005" X .12" .13mm X 3mm

STRAIGHT FLAT WIDE POINTS Length 4.5” (113mm)
Part# Critical Tip Measurement (CTM)
35A-ESD .24" X .005" 6mm X .13mm

STRAIGHT FINE POINTS Length 4.5” (113mm)
Part# Critical Tip Measurement (CTM)
3C-ESD .025" X .025" .63mm X .63mm

84° ANGLED BLUNT POINTS Length 4.75” (119mm)
Part# Critical Tip Measurement (CTM)
6-ESD .05" X .04" 1.25mm X 1mm

805.686.4686 | WWW.EXCELTA.COM 117
