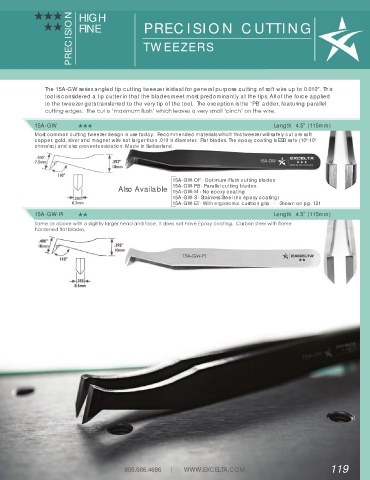

Page 119 - Excelta-2019-Catalog

HHH HIGH
PRECISION TWEEZERS
HH FINE PRECISION CUTTING

The 15A-GW series angled tip cutting tweezer is ideal for general purpose cutting of soft wire up to 0.010”. This
tool is considered a tip cutter in that the blades meet most predominantly at the tips. All of the force applied
to the tweezer gets transferred to the very tip of the tool. The exception is the ‘PB’ adder, featuring parallel
cutting edges. The cut is ‘maximum fl ush’ which leaves a very small ‘pinch’ on the wire.

15A-GW HHH Length 4.5” (115mm)
Most common cutting tweezer design in use today. Recommended materials which this tweezer will safely cut are soft
copper, gold, silver and magnet wire not larger than .010 in diameter. Flat blades. The epoxy coating is ESD safe (10 -10 6
5
ohms/sq) and also prevents oxidation. Made in Switzerland.

15A-GW-OF - Optimum-Flush cutting blades
Also Available 15A-GW-PB - Parallel cutting blades
15A-GW-M - No epoxy coating
15A-GW-S - Stainless Steel (no epoxy coating)
15A-GW-ET - With ergonomic cushion grip - Shown on pg. 121
15A-GW-PI HH Length 4.5” (115mm)
Same as above with a slightly larger head and face. It does not have Epoxy coating. Carbon steel with fl ame
hardened fl at blades.
