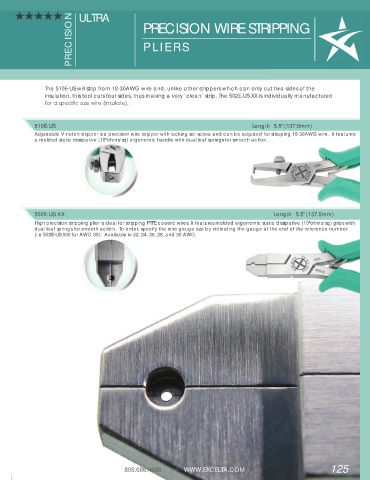

Page 125 - Excelta-2019-Catalog

HHHHH ULTRA PRECISION WIRE STRIPPING
PRECISION PLIERS

The 510E-US will strip from 18-30AWG wire and, unlike other strippers which can only cut two sides of the
insulation, this tool cuts four sides, thus making a very ‘clean’ strip. The 502E-US-XX is individually manufactured
for a specifi c size wire (insulate).

510E-US
510E-US Length 5.5”(137.5mm)
Length 5.5”(137.5mm)
Adjustable V-notch stripper is a precision wire stripper with locking set-screw and can be adjusted for stripping 18-30AWG wire. It features
a molded static dissipative (10 ohms/sq) ergonomic handle with dual leaf springs for smooth action.
8

502E-US-XX Length 5.5”(137.5mm)
High precision stripping plier is ideal for stripping PTFE coated wires. It features molded ergonomic static dissipative (10 ohms/sq) grips with
8
dual leaf springs for smooth action. To order, specify the wire gauge size by indicating the gauge at the end of the reference number
(i.e 502E-US-030 for AWG 30). Available in 22, 24, 26, 28, and 30 AWG.
